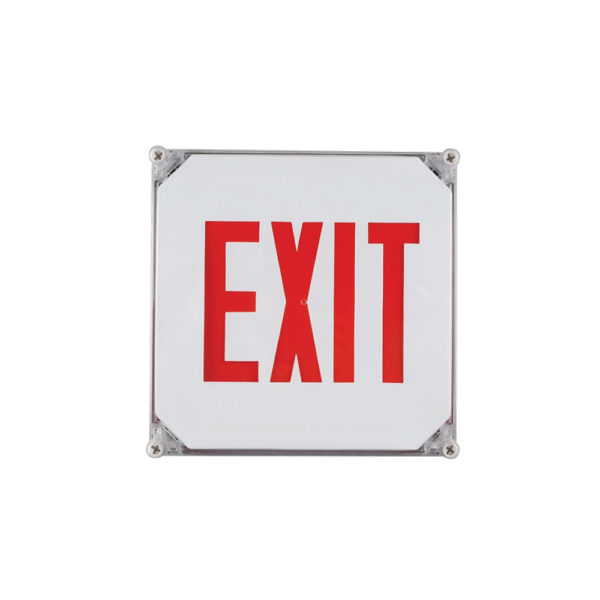

WES-2

Wet Location Exit Sign

Candela Lighting

The WES-2 Series is a wet location rated exit sign that offers single or double, red or green LED face options complete with a test switch and recharge indicator. The WES is easy to install and provides a maximum 24-hour full recharge time and a 90-minute backup time.

Additional Downloads

Physical

  • Operating Temperature: 0ºC to 40ºC (32°F to 104°F)
  • Material: Injection-Molded Thermoplastic ABS Housing
  • Mounting: Universal J-Box Mounting Pattern

Electrical

  • Wattage: 4.8W
  • Voltage: 120/277VAC
  • Battery: 6V Nickel Cadmium 90-Minutes Emergency Operation

Performance

  • Warranty: 5 years for Fixture Housing & 2 Years for Battery
  • IP Rating: IP65

Approvals

  • Wet Location
  • IP65
  • UL
