CREST

Center Basket Troffer LED

Ascent Architectural Lighting

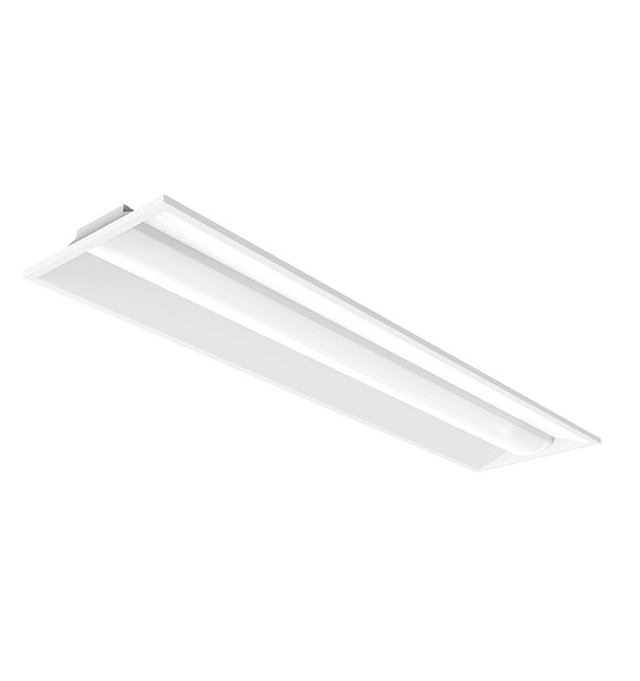

CREST is a versatile center-basket LED troffer that delivers uniform, glare-free illumination with selectable wattages and five adjustable color temperatures (3500K–6500K). Featuring a sleek, low-profile design and back-lit frosted polycarbonate lens, it offers up to 6,500 lumens at an impressive 125 LPW. CREST is manufactured with a single stamping process producing corners and sides that are turned in and hemmed which removes sharp edges for safer installation. Compatible with standard t-grid ceilings and 0–10V dimming systems, CREST is ideal for schools, offices, and healthcare settings. DLC Premium listed and backed by a 5-year warranty, it’s engineered for performance, efficiency, and flexibility.
CREST is a versatile center-basket LED troffer that delivers uniform, glare-free illumination with selectable wattages and five adjustable color temperatures (3500K–6500K). Featuring a sleek, low-profile design and back-lit frosted polycarbonate lens, it offers up to 6,500 lumens at an impressive 125 LPW. CREST is manufactured with a single stamping process producing corners and sides that are turned in and hemmed which removes sharp edges for safer installation. Compatible with standard t-grid ceilings and 0–10V dimming systems, CREST is ideal for schools, offices, and healthcare settings. DLC Premium listed and backed by a 5-year warranty, it’s engineered for performance, efficiency, and flexibility.

Availability

  • Call for Stock

CCT

  • 3500K
  • 4000K
  • 5000K
  • 5700K
  • 6500K

CRI

  • 80 CRI

Color / Finish

  • White

Data Integrity

  • High

Dimensions

  • H: 1.97 In. L: 47.72 In. W: 23.74 In.
  • H: 1.97 In. L: 23.74 In. W: 23.74 In.

Dimming Protocol

  • 0-10 V

Dimming Range

  • < 1%

Distribution

  • Direct

Efficacy

  • 125 lm/w

Emergency Options

  • Emergency Battery Backup

Lamp Life

  • 50000 hrs

Lamp Source

  • LED

Listings

  • cETLus

Lumens

  • 1950 Lm
  • 2600 Lm
  • 3250 Lm
  • 3750 Lm
  • 3900 Lm
  • 4550 Lm
  • 5000 Lm
  • 6250 Lm

Materials

  • Aluminum
  • Polycarbonate
  • Steel

Mounting

  • Ceiling
  • Grid
  • Plenum
  • Recessed

Product Priority

  • A

Ratings & Compliance

  • DLC
  • Damp
  • Dry

Size

  • 2x2 Ft.
  • 2x4 Ft.

Static LED Color

  • White

Voltage

  • 110-277 V
  • 120 V
  • 277 V

Warranty

  • 5 yr

Watts

  • 15 w
  • 20 w
  • 25 w
  • 30 w
  • 35 w
  • 40 w
  • 50 w

Resources

Availability

  • Call for Stock

CCT

  • 3500K
  • 4000K
  • 5000K
  • 5700K
  • 6500K

CRI

  • 80 CRI

Color / Finish

  • White

Data Integrity

  • High

Dimensions

  • H: 1.97 In. L: 47.72 In. W: 23.74 In.
  • H: 1.97 In. L: 23.74 In. W: 23.74 In.

Dimming Protocol

  • 0-10 V

Dimming Range

  • < 1%

Distribution

  • Direct

Efficacy

  • 125 lm/w

Emergency Options

  • Emergency Battery Backup

Lamp Life

  • 50000 hrs

Lamp Source

  • LED

Listings

  • cETLus

Lumens

  • 1950 Lm
  • 2600 Lm
  • 3250 Lm
  • 3750 Lm
  • 3900 Lm
  • 4550 Lm
  • 5000 Lm
  • 6250 Lm

Materials

  • Aluminum
  • Polycarbonate
  • Steel

Mounting

  • Ceiling
  • Grid
  • Plenum
  • Recessed

Product Priority

  • A

Ratings & Compliance

  • DLC
  • Damp
  • Dry

Size

  • 2x2 Ft.
  • 2x4 Ft.

Static LED Color

  • White

Voltage

  • 110-277 V
  • 120 V
  • 277 V

Warranty

  • 5 yr

Watts

  • 15 w
  • 20 w
  • 25 w
  • 30 w
  • 35 w
  • 40 w
  • 50 w
