Wall Pack Full Cutoff Adjustable LED

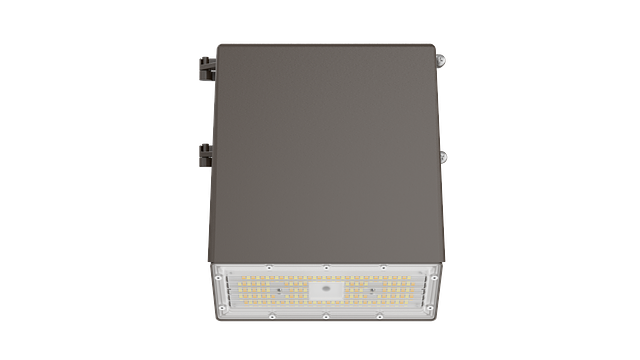

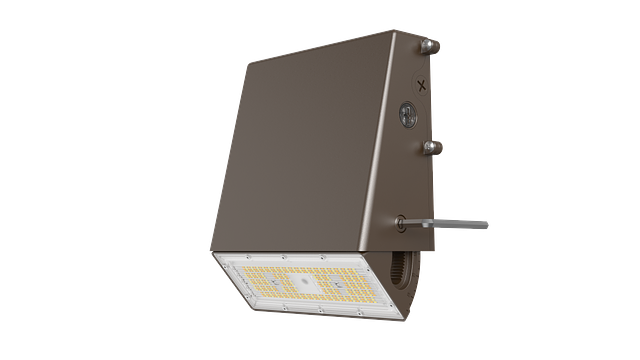

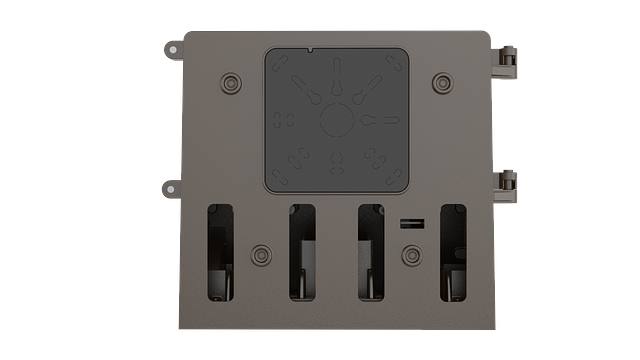

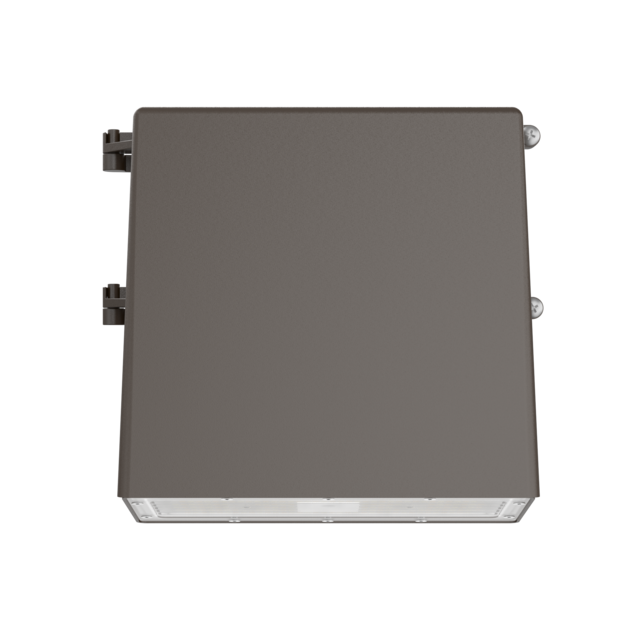

The WPFCA features a die-cast aluminum housing designed to withstand prolonged exposure to moisture, temperature swings, and airborne contaminants in outdoor environments. The fixture mounts directly to a wall surface and is rated for wet locations, making it appropriate for building exteriors, loading docks, parking structures, and covered overhangs. A 0–45° mechanically adjustable tilt angle is built into the mounting system, allowing the luminaire head to be aimed after installation without the need for secondary brackets or adapters. The full-cutoff optical geometry eliminates upward light spill, supporting dark-sky compliance and minimizing light trespass to adjacent properties. The dark bronze powder coat finish is the standard offering. Overall dimensions are 10.70" wide × 8.90" tall × 4.44" deep, with a compact profile that integrates cleanly against building facades. Built-in 2.5kV surge protection guards internal electronics against power disturbances.

The WPFCA Wall Pack Full Cutoff Adjustable LED operates on 120–277V AC and is available in two field-selectable size configurations. FS1 offers selectable wattage of 8W, 15W, 25W, or 30W, delivering 1,200 to 4,500 lumens at a consistent efficacy of 150 lm/W. FS2 offers selectable wattage of 30W, 40W, 50W, or 60W, delivering 4,500 to 9,000 lumens, also at 150 lm/W. Both configurations feature field-selectable CCT with three settings — 3000K, 4000K, and 5000K — allowing color temperature to be matched to site requirements at the time of installation. CRI is rated at greater than 70. The beam angle is adjustable from 0° to 45° via the mechanical tilt mechanism. The fixture is 0–10V dimmable and includes an integral photocell for automatic dusk-to-dawn operation. An optional emergency battery module provides 8W of maintained output for a minimum of 90 minutes.

Part of the Terrain Site Lighting wall pack family: The WPFCA is Terrain Site Lighting's full-cutoff adjustable wall pack, engineered for applications where optical precision and installation flexibility are equally critical. It complements the broader Terrain Site Lighting portfolio of site, area, and perimeter luminaires designed for commercial and industrial environments. Specifiers working on multi-building or campus projects will find the WPFCA's selectable wattage and CCT particularly valuable for maintaining consistency across varied mounting conditions.

Choosing a color temperature: The WPFCA's three-position CCT selector covers the range from warm white (3000K) through neutral (4000K) to cool daylight (5000K). For building entrances and hospitality-adjacent environments where a welcoming appearance matters, 3000K is typically preferred. Parking lots, loading docks, and utility areas often benefit from the crisp contrast of 4000K or 5000K, which improves camera performance and visual acuity at distance. Because the CCT is field selectable, the decision can be made — or revised — at installation without swapping fixtures or ordering a separate SKU.

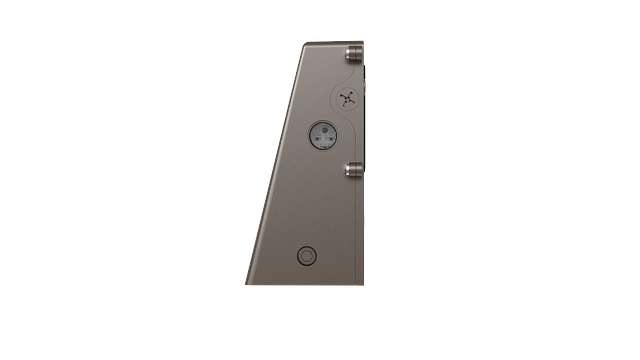

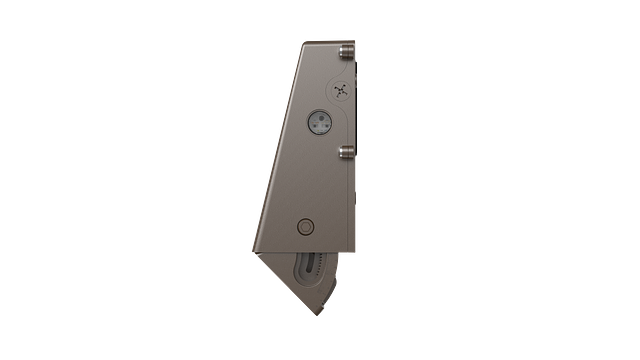

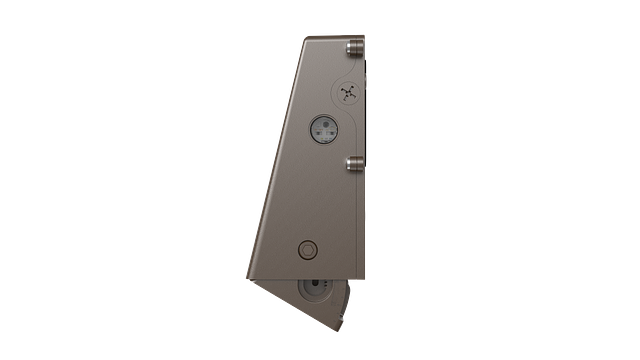

Understanding the adjustable beam angle: The 0–45° mechanical tilt is not a secondary accessory — it's integral to how the WPFCA is mounted and aimed. Once the fixture is secured to the wall, the head can be pivoted within that range to direct the beam toward a target zone: a walkway, a parking aisle, a door approach, or a perimeter boundary. This adjustability makes the WPFCA particularly effective on buildings where mounting height or setback distances don't align neatly with standard fixed-angle wall packs.

Dimming and photocell integration: The WPFCA ships with a built-in photocell for automatic dusk-to-dawn control, eliminating the need for external sensors or timers in most applications. For projects requiring dimming — whether for code compliance, occupancy-based control, or energy budgeting — the fixture accepts a standard 0–10V control signal. The optional emergency battery configuration (suffix -EM) adds 90-minute maintained illumination at 8W for egress and life-safety compliance without requiring a separate emergency unit.

Ordering logic: The WPFCA SKU is structured as WPFCA–[Size]–[CCT]–[Finish]–[Options]. Size is either FS1 (lower wattage range) or FS2 (higher wattage range); both are field selectable within their respective ranges. CCT is designated FS for field selectable across all three color temperature settings. The standard finish is BZ (Dark Bronze). The optional -EM suffix adds the 8W integral emergency battery. Example: WPFCA-FS1-FS-BZ-EM specifies a lower-wattage unit with field-selectable CCT, dark bronze finish, and emergency battery.
