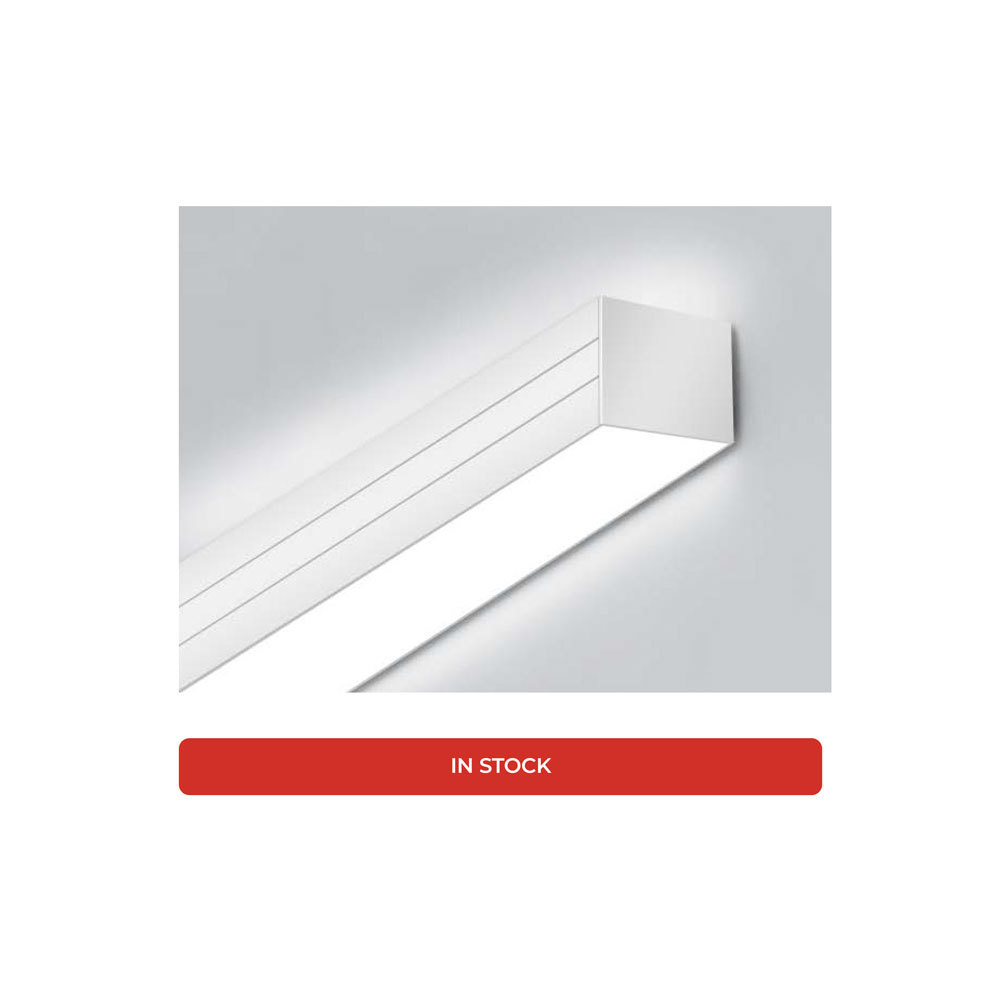

SUMMIT 38-W
3.8" Architectural Linear Wall LED
Ascent Architectural Lighting
Summit 3.8 is a sleek, architectural linear LED luminaire that blends modern aesthetics with high-performance illumination. Designed for wall mounting, Summit 3.8 W is available in 2', 3', 4', and 8' lengths, with the ability to connect for continuous runs up to 40'. Field-selectable wattage, color temperature, and distribution provide unmatched versatility and on-site customization. Rated for damp locations, it's ideal for a wide range of applications.
Additional Downloads
Physical
- Material: Extruded Aluminum
- Mounting: Wall
- Optics: Diffuser, Regressed
Electrical
- Wattage: Field Selectable: 10/15/20W, 15/23/30W, 20/30/40W, 40/60/80W
- Voltage: 110-277V
- Dimming: 0-10V to 1%, 1-10V to 10%
Performance
- Warranty: 5 years
- CCT: Field Selectable: 3000K, 3500K, 4000K
- CRI: 80, 90
Approvals
- Damp Location
- cULus
