SUMMIT 38 SSUMMIT 38 S
3.8" Architectural Linear Surface LED
Ascent Architectural Lighting

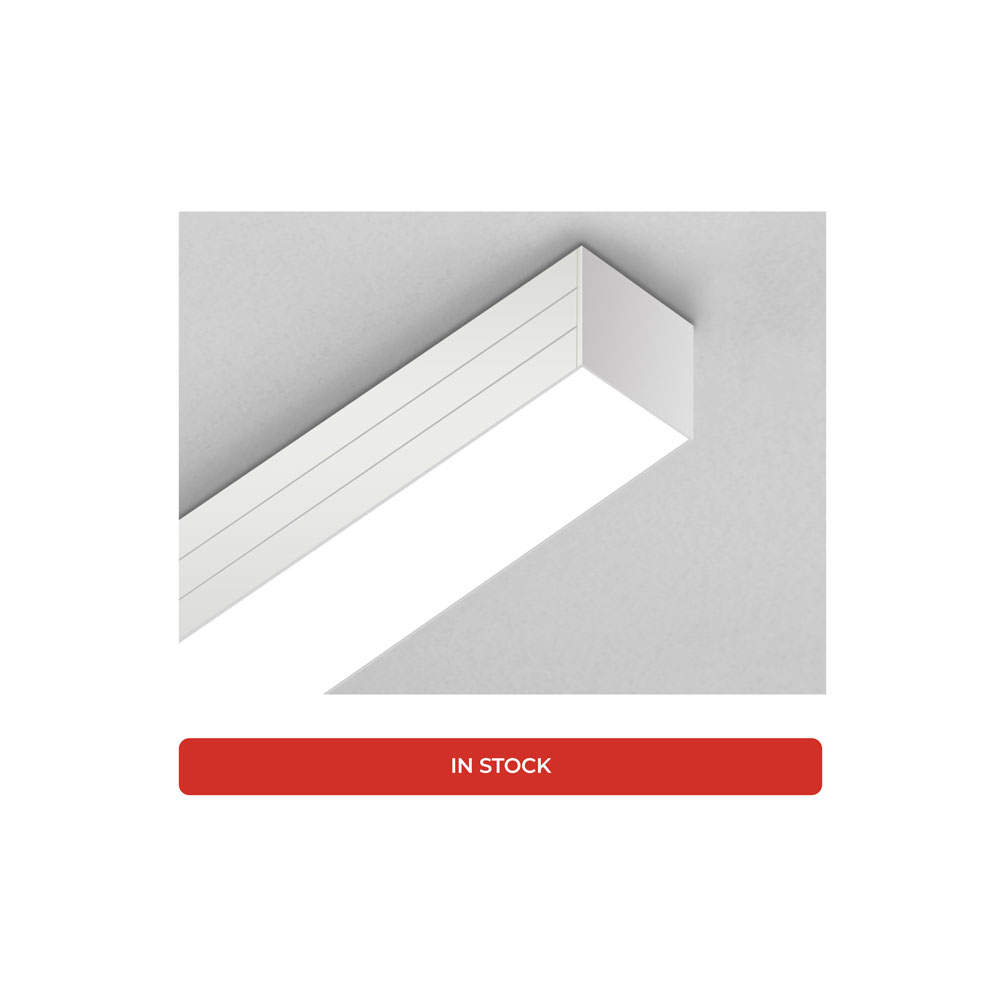

SUMMIT 3.8 is a sleek, architectural linear LED luminaire that combines modern aesthetics with high-performance illumination. Designed for surface mounting, SUMMIT 3.8 S delivers 100% direct distribution for clean, effective lighting in any space. Available in 2', 3', 4', and 8' lengths, SUMMIT 3.8 S can be connected for continuous runs up to 40' or configured into geometric shapes using illuminated corners. Rated for damp locations, it’s suitable for a wide range of environments. With field-selectable wattage and color temperature, SUMMIT 3.8 S offers unmatched versatility and on-site customization.
SUMMIT 3.8 is a sleek, architectural linear LED luminaire that combines modern aesthetics with high-performance illumination. Designed for surface mounting, SUMMIT 3.8 S delivers 100% direct distribution for clean, effective lighting in any space. Available in 2', 3', 4', and 8' lengths, SUMMIT 3.8 S can be connected for continuous runs up to 40' or configured into geometric shapes using illuminated corners. Rated for damp locations, it’s suitable for a wide range of environments. With field-selectable wattage and color temperature, SUMMIT 3.8 S offers unmatched versatility and on-site customization.
Availability
- Quick Ship | Call for Stock
CCT
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Color / Finish
- Black
- White
Controls Options
- Occupancy Sensor
Dimensions
- L: 23.7 In. W: 3.74 In. H: 3.74 In.
- L: 35.71 In. W: 3.74 In. H: 3.74 In.
- L: 47.72 In. W: 3.74 In. H: 3.74 In.
- L: 95.24 In. W: 3.74 In. H: 3.74 In.
Dimming Protocol
- 0-10 V
- 1-10 V
Dimming Range
- 1%
- 10%
Distribution
- Direct
Efficacy
- 90
- 110
Emergency Options
- Emergency Battery Backup
- Integral EM Battery
Lamp Base
- Integrated
Lamp Life
- 50000
Lamp Source
- LED
Listings
- cULus
Lumens
- 100
- 900
- 1100
- 1350
- 1650
- 1800
- 2070
- 2200
- 2530
- 2700
- 3300
- 3600
- 4400
- 5400
- 6000
- 7200
- 8800
Lumens/Linear Ft.
- 450
- 550
- 600
- 675
- 690
- 750
- 825
- 843.33
- 900
- 1100
Materials
- Aluminum
Mounting
- Ceiling
- Flush
- Surface
Product Priority
- Key
Ratings & Compliance
- Damp
- LM80
Shape
- Linear
- Rectangular
- Rectilinear
Voltage
- 110 V
- 110-277 V
- 120 V
- 208 V
- 220 V
- 230 V
- 240 V
- 277 V
- UNV
Warranty
- 5 yr
Watts
- 20
- 30
- 40
- 80
Up/Down Ratio
- 0/100
Watts / Linear Ft.
- 5
- 7.5
- 7.67
- 10
