Edge-Lit Architectural Linear LED

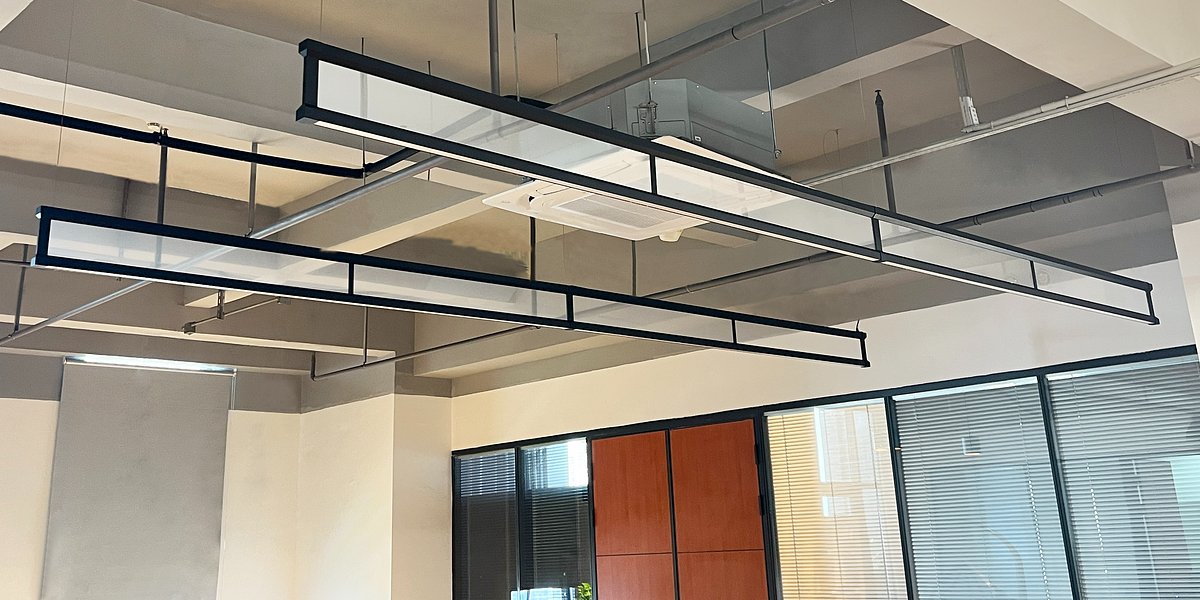

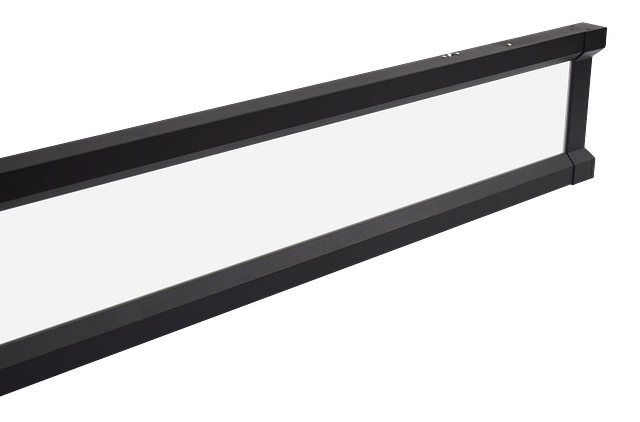

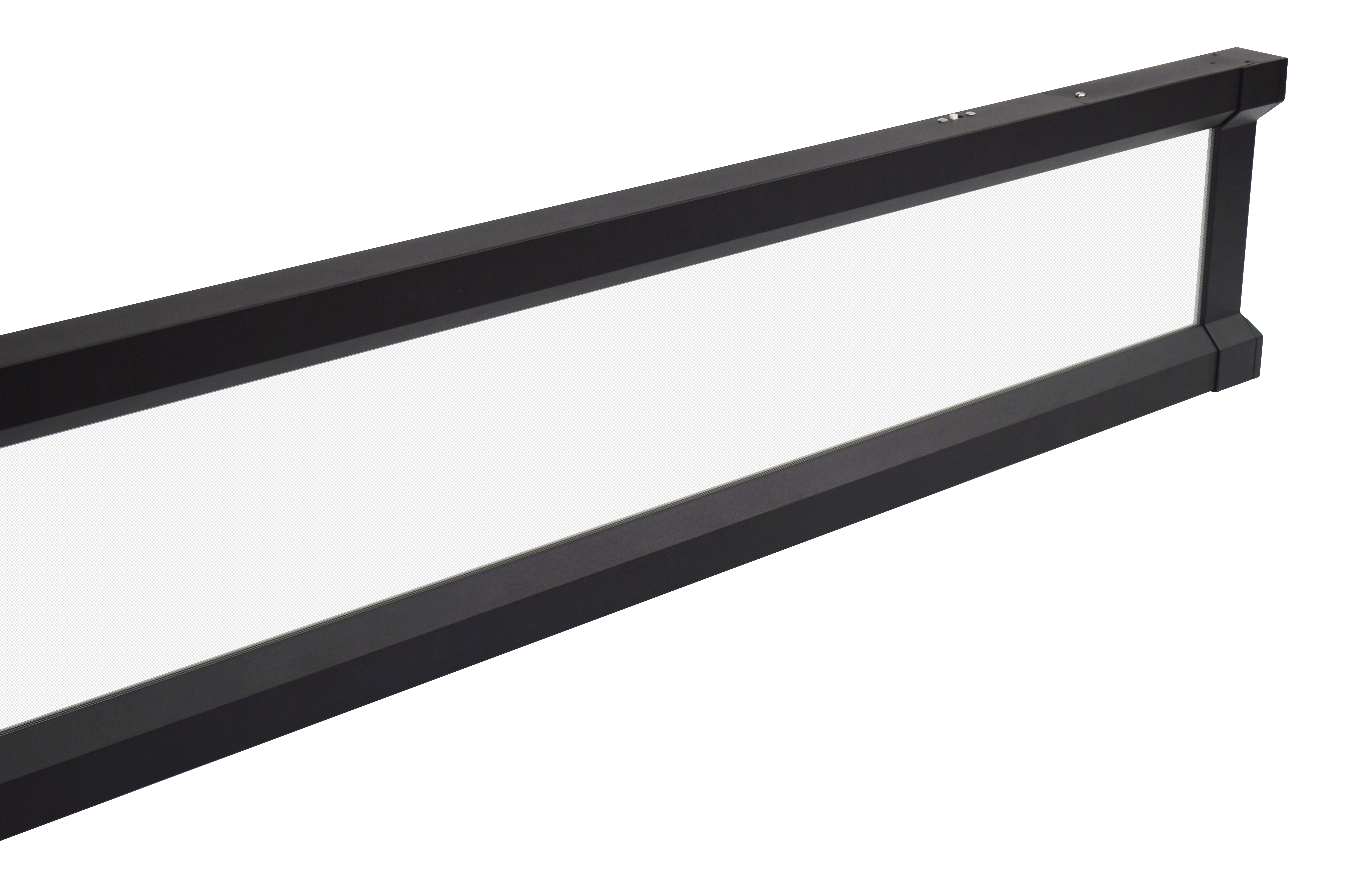

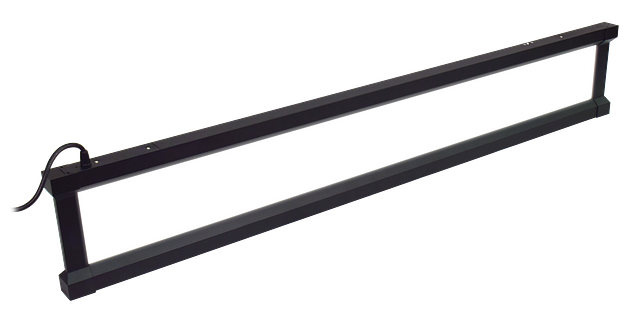

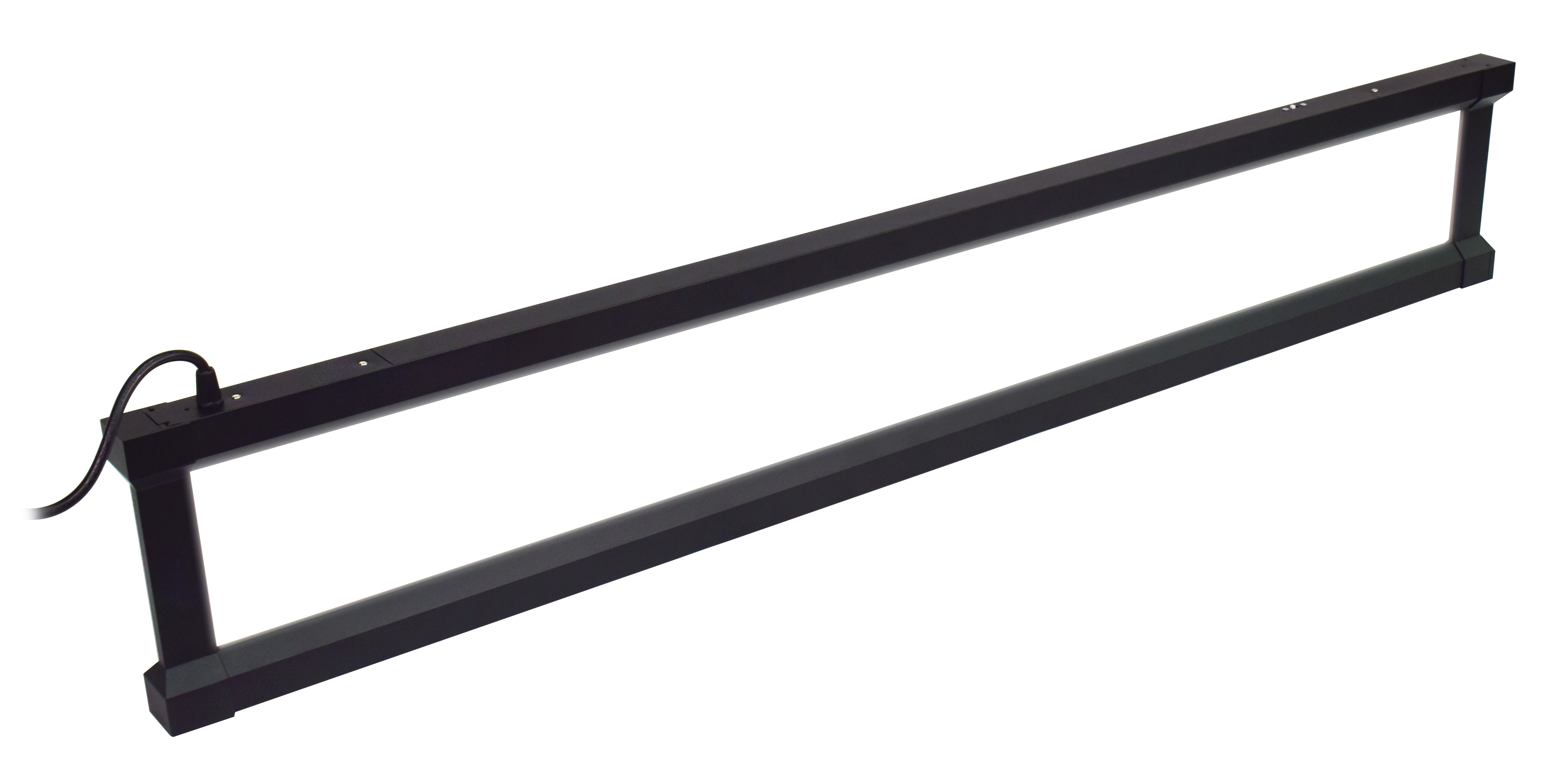

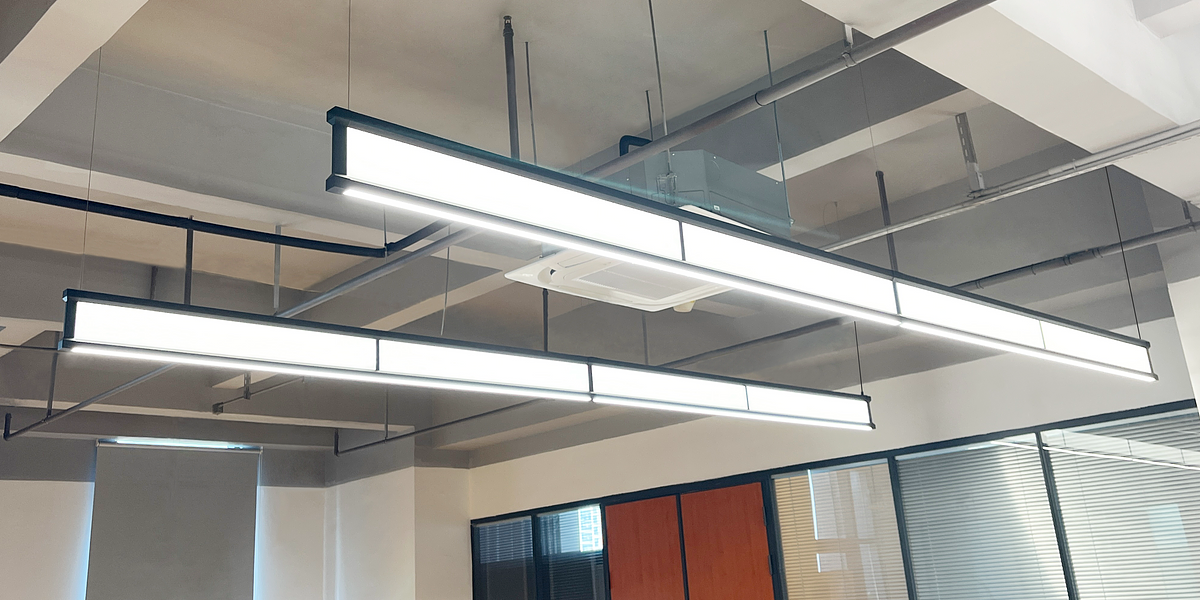

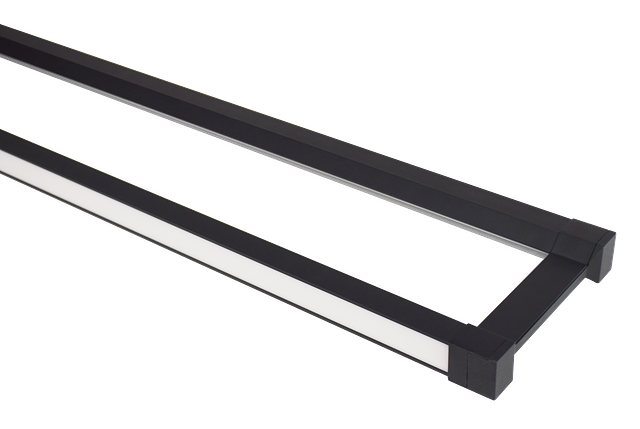

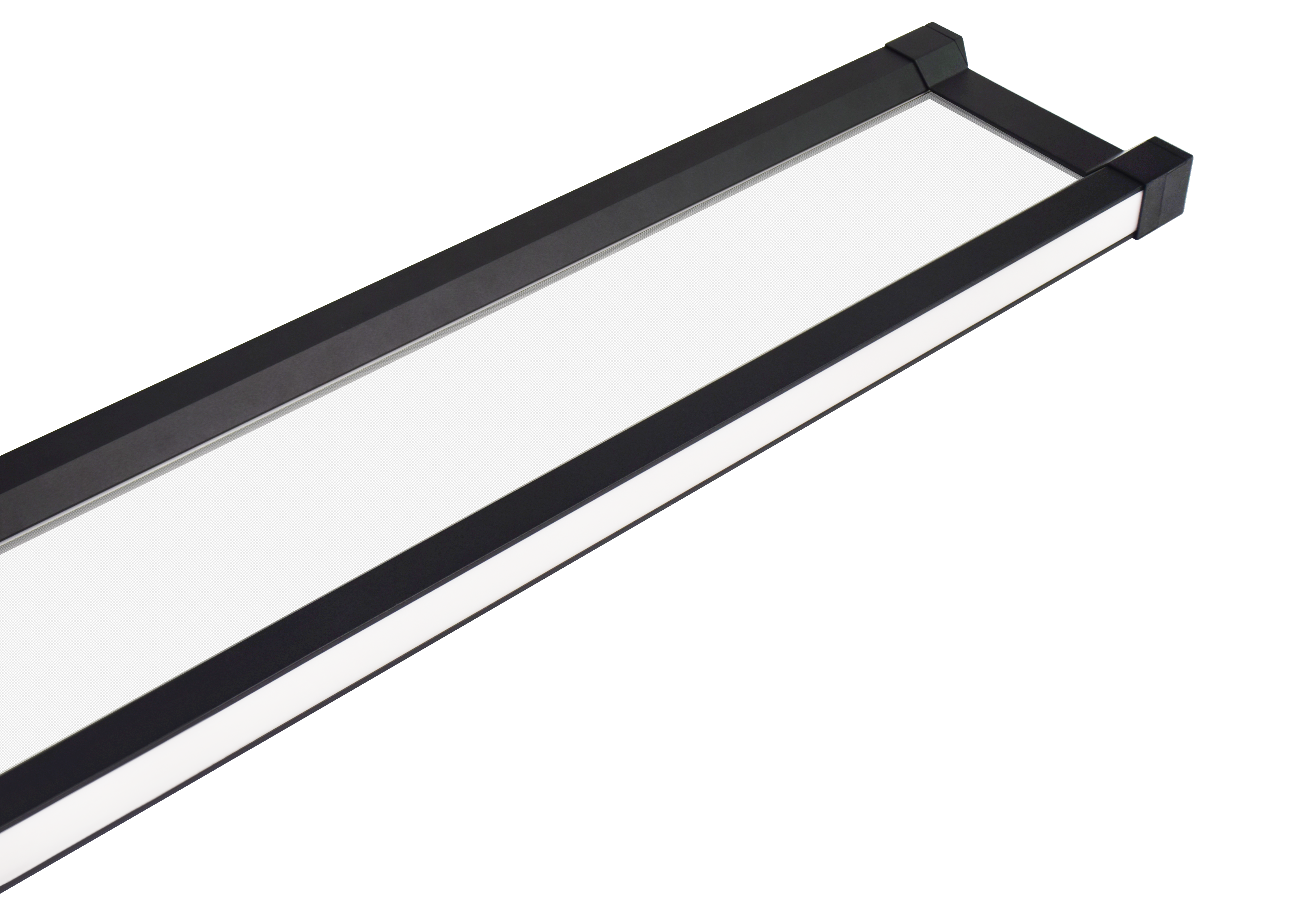

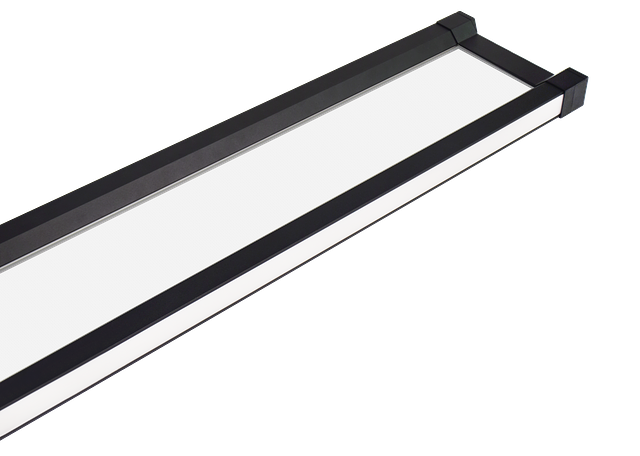

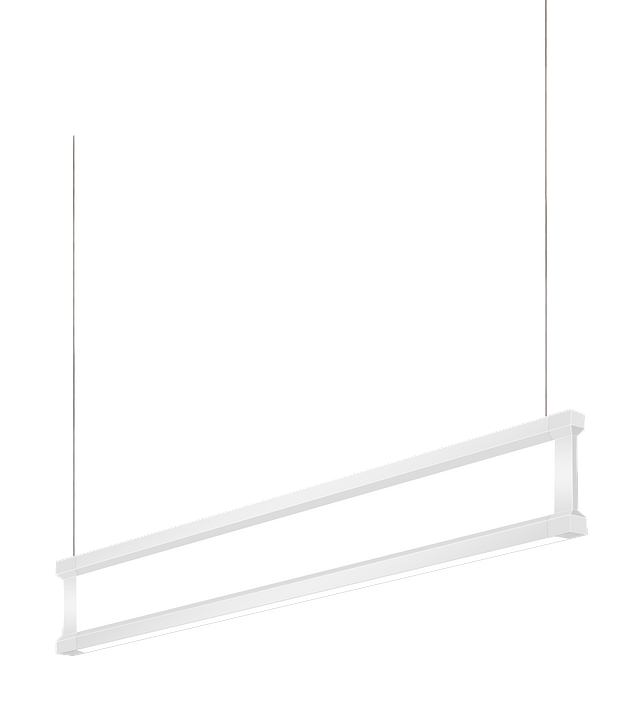

GLACIER TASK is an attractive architectural linear luminaire utilizing ultra-thin semi-transparent optics within a signature sloping silhouette where the frame meets the lightguide. Advanced precision optics deliver visually comfortable illumination and superior light uniformity. GLACIER TASK is intended for suspended applications where direct lighting is required. GLACIER TASK is available with a diffuser optic and field selectable CCT.

Availability

Quick Ship | Call for Stock

CCT

3000K
3500K
4000K

CRI

80 CRI

Color / Finish

Black
White

Controls Options

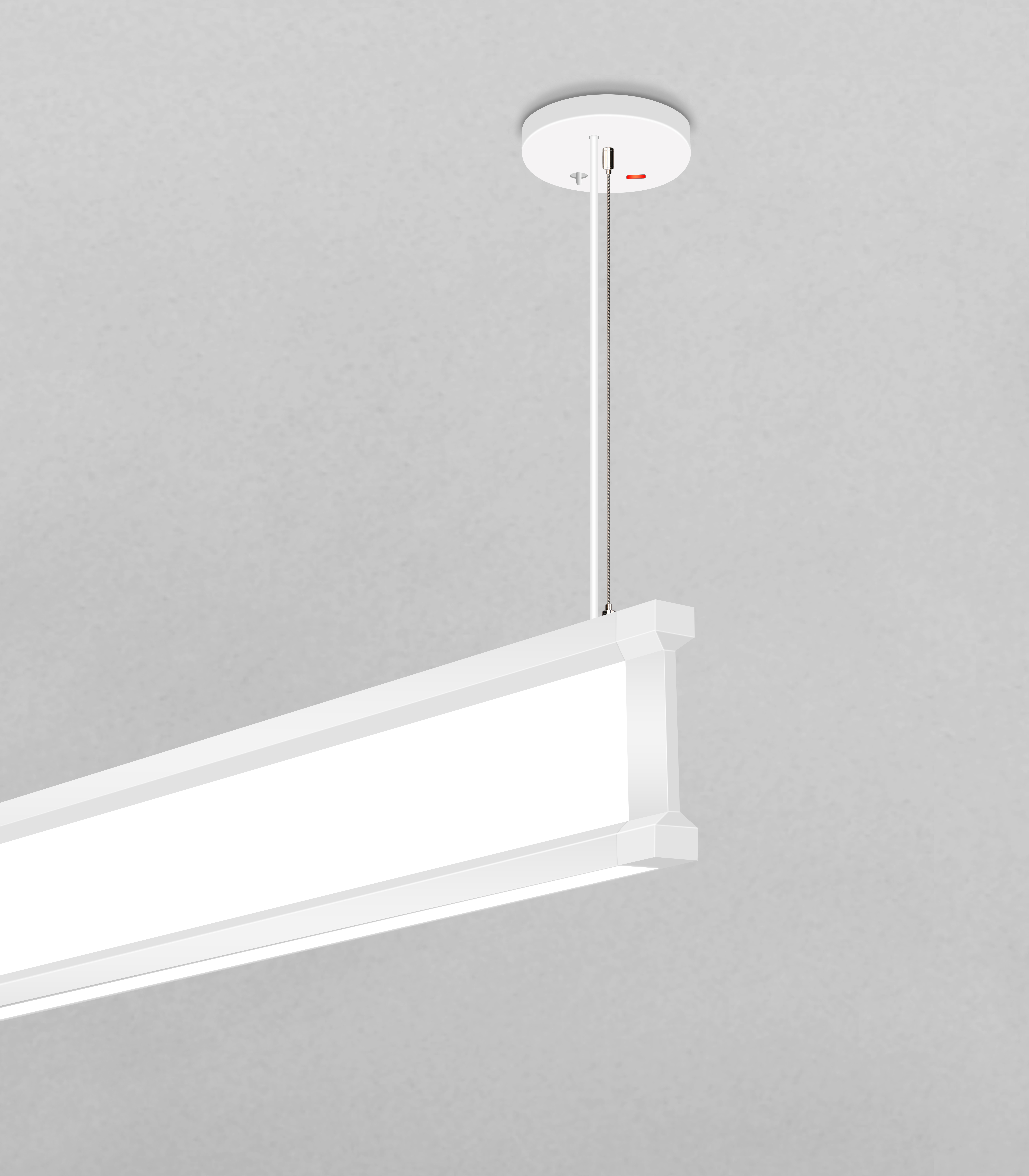

Occupancy Sensor
Wattstopper

Data Integrity

High

Dimensions

H: 7.55 In. L: 71.67 In. W: 1.44 In.
H: 7.55 In. L: 91 In. W: 1.44 In.
H: 7.55 In. L: 46.54 In. W: 1.44 In.

Dimming Protocol

0-10 V

Dimming Range

1%
10%

Distribution

Direct

Efficacy

100 lm/w
110 lm/w

Emergency Options

Emergency Battery Backup

Lamp Base

Integrated

Lamp Life

50000 hrs

Lamp Source

LED

Listings

cULus

Lumens

4000 Lm
4400 Lm
6000 Lm
6600 Lm
8000 Lm
8800 Lm

Lumens/Linear Ft.

1000 Lm/ft
1100 Lm/ft

Materials

Aluminum

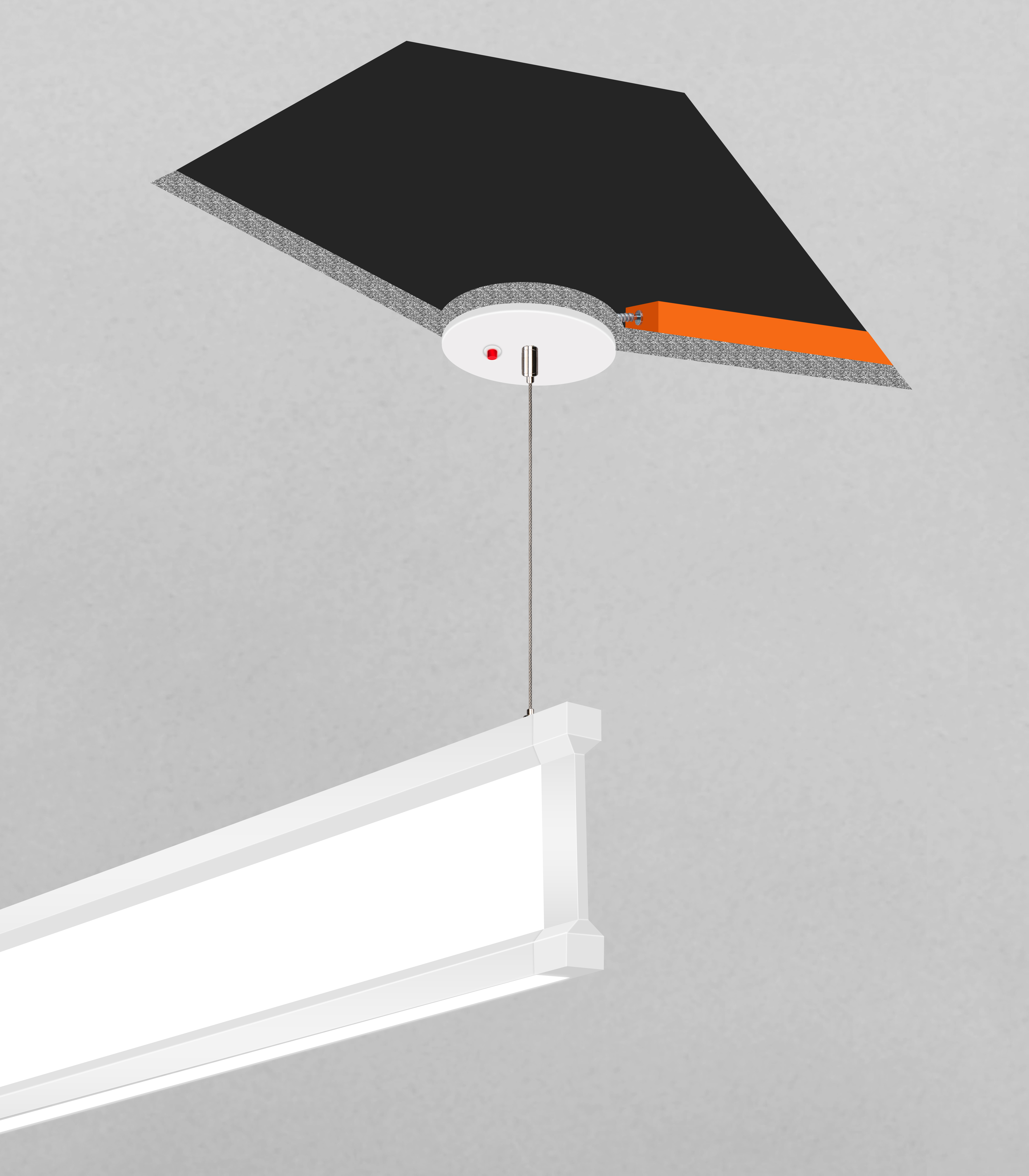

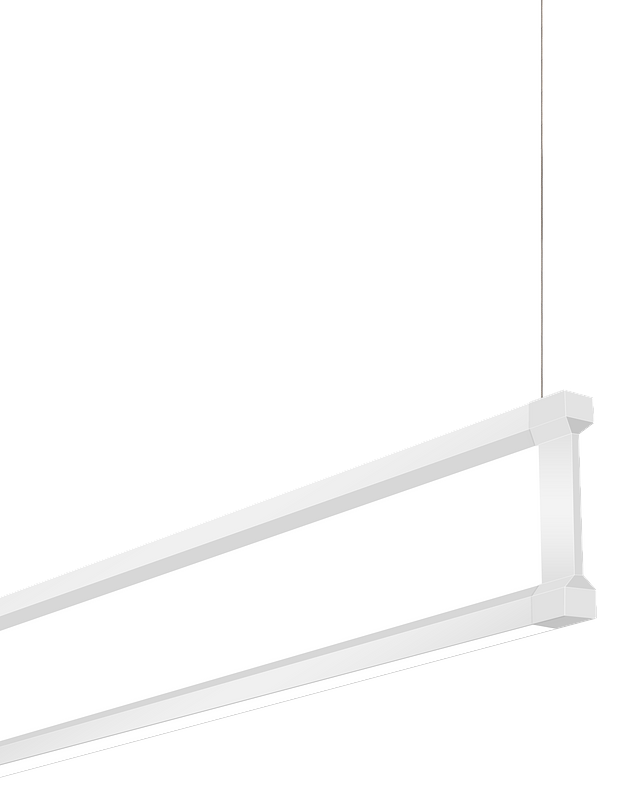

Mounting

Cable
Ceiling
Continuous Row
Grid
Hanging
Pendant
Surface / Canopy
Suspended

Product Priority

B

Ratings & Compliance

Damp
LM80

Shape

Linear
Rectangular
Rectilinear

Static LED Color

White

Voltage

110 V
110-277 V
120 V
208 V
220 V
230 V
240 V
277 V
UNV

Warranty

5 yr

Watts

40 w
60 w
80 w

GLACIER TASK
