UCUC
Under Cabinet LED
Candela

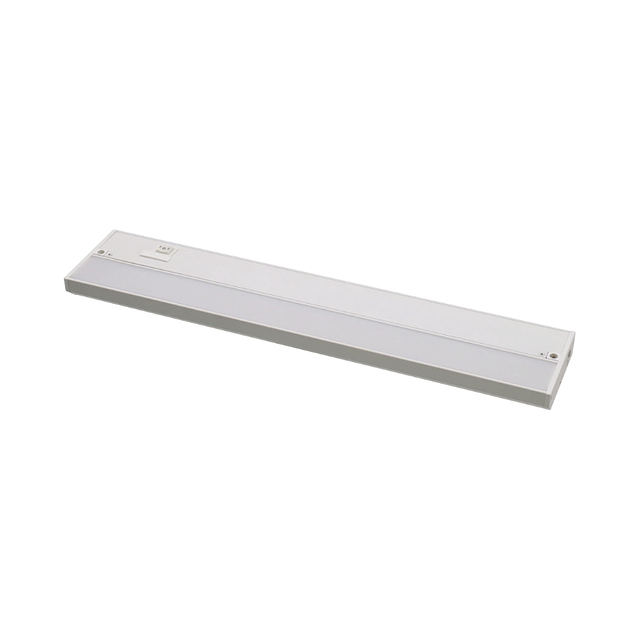

The UC series is a versatile 120V under cabinet LED luminaire intended for kitchen installations with its low profile 1" tall housing made from durable extruded aluminum that provides excellent heat dissipation. Standard UC features include a hi/low rocker switch for 100% and 50% brightness, field selectable CCT slider switch with 5 color temperature options, linking capability up to 200W from a single power feed, and smooth dimming to 10%. UC is provided standard with a 120V plug for easy installation but it can be made hardwire upon request.
The UC series is a versatile 120V under cabinet LED luminaire intended for kitchen installations with its low profile 1" tall housing made from durable extruded aluminum that provides excellent heat dissipation. Standard UC features include a hi/low rocker switch for 100% and 50% brightness, field selectable CCT slider switch with 5 color temperature options, linking capability up to 200W from a single power feed, and smooth dimming to 10%. UC is provided standard with a 120V plug for easy installation but it can be made hardwire upon request.
Specsheets
View All
(4)
Availability
- Portal Stock
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90 CRI
Color / Finish
- White
Dimensions
- H: 1 In. L: 9 In. W: 3.6 In.
- H: 1 In. L: 18 In. W: 3.6 In.
- H: 1 In. L: 32 In. W: 3.6 In.
- H: 1 In. L: 48 In. W: 3.6 In.
- H: 1 In. L: 40 In. W: 3.6 In.
- H: 1 In. L: 24 In. W: 3.6 In.
- H: 1 In. L: 12 In. W: 3.6 In.
Distribution
- Direct
Efficacy
- 60 lm/w
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- ETL
Lumens
- 180 Lm
- 300 Lm
- 480 Lm
- 720 Lm
- 960 Lm
- 1200 Lm
- 1440 Lm
Materials
- Aluminum
- Polycarbonate
Ratings & Compliance
- Dry
Static LED Color
- White
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 3 w
- 5 w
- 8 w
- 12 w
- 16 w
- 20 w
- 24 w
