Illuminated Mirror LED

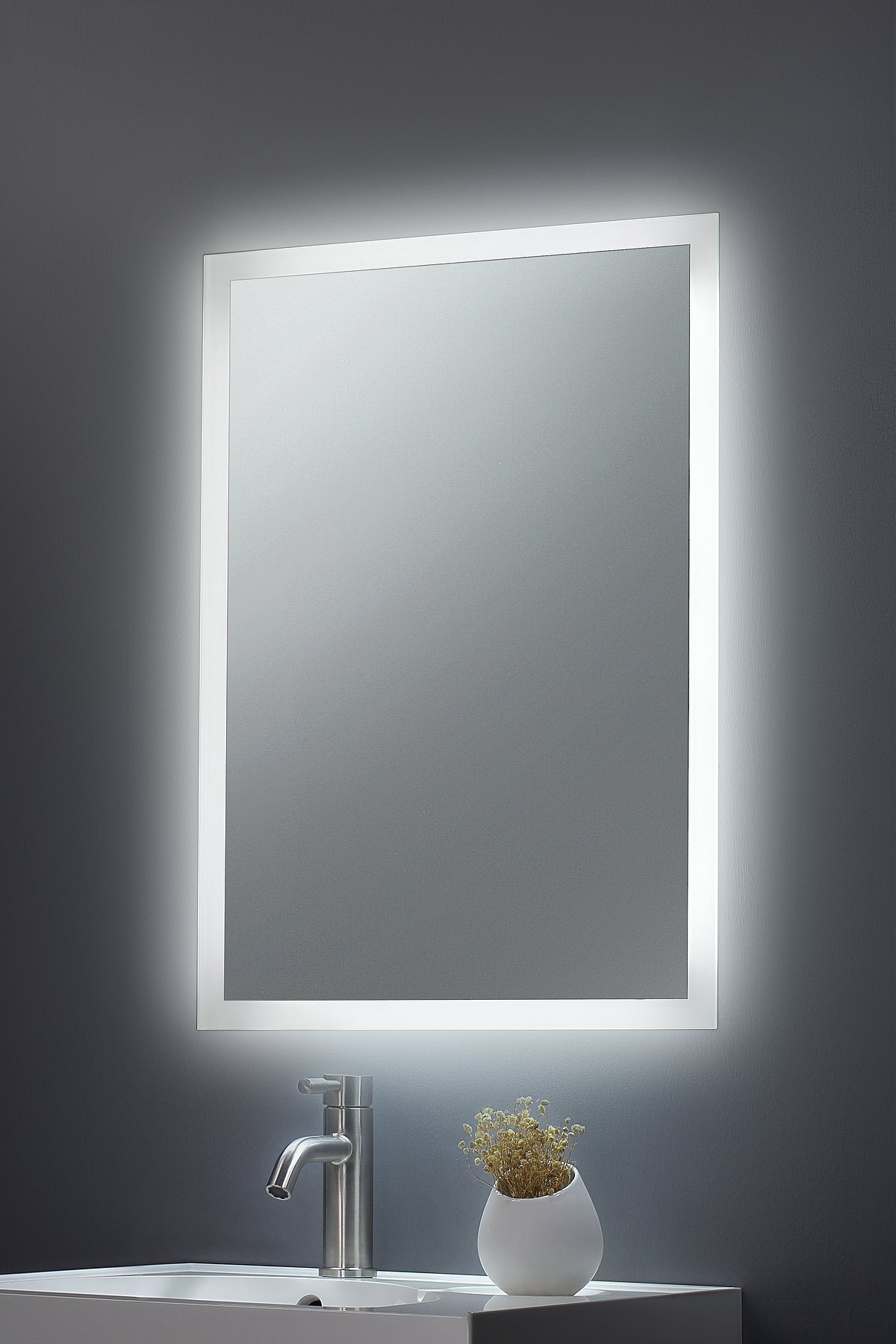

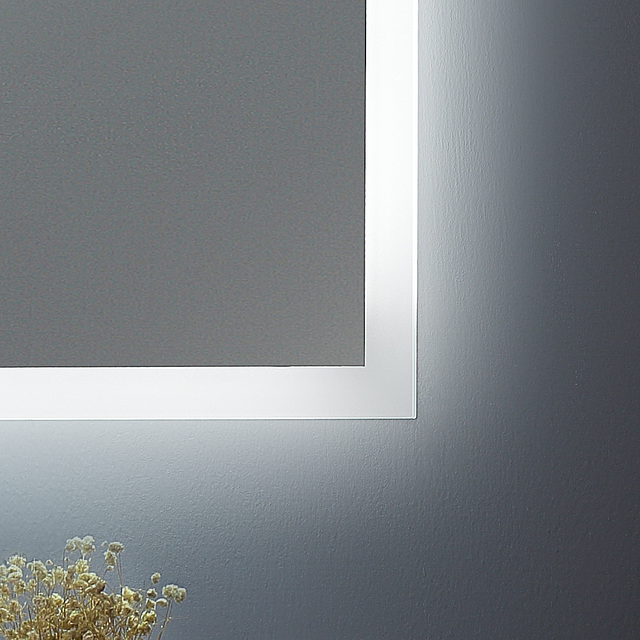

The REFLECTIONS mirror is built around a copper-free, silver-backed mirror pane set within an anodized aluminum frame, giving the fixture a slim, contemporary profile with a durable, corrosion-resistant finish. The LED light engine and anti-fog de-fogger element are integrated behind the mirror's perimeter, producing an even, edge-lit glow without a visible light source or frame bulk.

The fixture wall-mounts using a keyed mounting slot system for secure, level installation, with a compact driver and junction box housed within the rear cavity for field access during installation and service. The mirror carries an IP44 ingress protection rating, suitable for installation in bathrooms and other areas where incidental moisture and humidity are present. Overall dimensions scale with the selected size, from the compact 24" x 32" model up to the 36" x 60" model, with custom sizes available on request.

REFLECTIONS operates on standard 120V 60Hz line voltage with a power factor greater than 0.9, and is compatible with a range of approved Lutron and Leviton dimmers when ordered with hard-wire ELV or 0–10V dimming controls; touch button, push-button on/off, and microwave occupancy sensor control options are also available depending on the configuration selected. Total fixture wattage and delivered lumens vary by size and CCT configuration — ranging from approximately 63 to 155 watts and 900 to 2,600 lumens across the size range — while efficacy holds steady at 50 lm/W across all models. Color temperature is available as a single fixed CCT in 2700K, 3000K, 4000K, 5000K, or 6000K; as a field-selectable 3-CCT option across 3000K, 3500K, and 4000K via touch button control only; or as tunable white across a 3000K–6000K range, also via touch button control only. CRI is rated at 80 or above across all configurations.

Part of the REFLECTIONS family: The REFLECTIONS Anti-Fog Illuminated Mirror LED is available across seven sizes — from a compact 24" x 32" to a generous 36" x 60" — allowing the same integrated lighting and de-fogging functionality to be specified consistently across primary baths, guest baths, and powder rooms within a single project. Custom sizes are available through the factory for projects with non-standard vanity dimensions.

Understanding the anti-fog de-fogger: The integrated de-fogger is the feature that sets REFLECTIONS apart from a standard illuminated mirror. A discreet heating element behind the mirror surface prevents condensation buildup from hot showers and baths, keeping the mirror clear and ready to use without manual wiping. This is a particularly valuable feature in smaller bathrooms or ensuite spaces where steam accumulation is common.

Choosing a color temperature: Single CCT models are the straightforward choice when the lighting design has already settled on a specific color temperature, offered from warm 2700K through cool 6000K. The field-selectable 3-CCT option is well suited to projects where the ideal color temperature isn't locked in until installation, allowing the electrician or homeowner to choose among three commonly specified settings via the touch control. Tunable white offers the greatest flexibility, letting the user adjust color temperature across the full range to match the time of day or personal preference — a strong fit for primary bathrooms and higher-end residential or hospitality installations.

Dimming and control compatibility: REFLECTIONS is available with hard-wire ELV or 0–10V dimming, touch button dimming, push-button on/off, or microwave occupancy sensor control, allowing the control method to be matched to the project's wiring and use case. When specifying hard-wire dimming, confirm compatibility with one of the approved dimmers, which include select Lutron Skylark, Diva, Maestro, and Lumea models, as well as the Leviton 1C1705.

Ordering logic: REFLECTIONS SKUs follow the format REFLECTIONS-[SIZE]-[CCT]-[CONTROL], for example REFLECTIONS-2436-27 for a 24" x 36" mirror in 2700K. Size codes correspond to the seven standard dimensions, CCT codes specify the single color temperature, field-selectable 3-CCT, or tunable white option, and control codes specify the dimming or switching method. Note that field-selectable and tunable white configurations are available with touch button control only.
