SLHR
Image-2 White.png
Image 5CCT.png
Silver finish Step Light.jpgSLHR

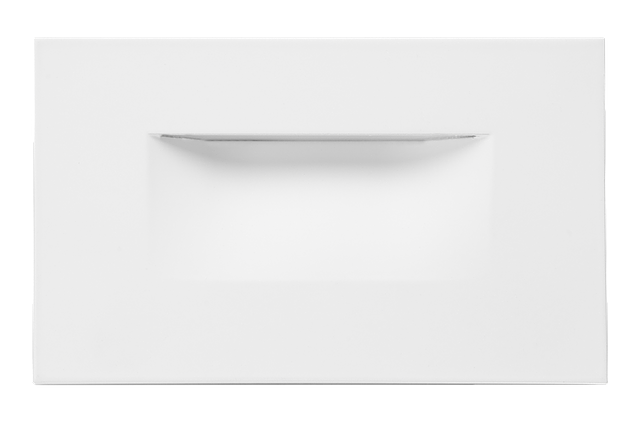

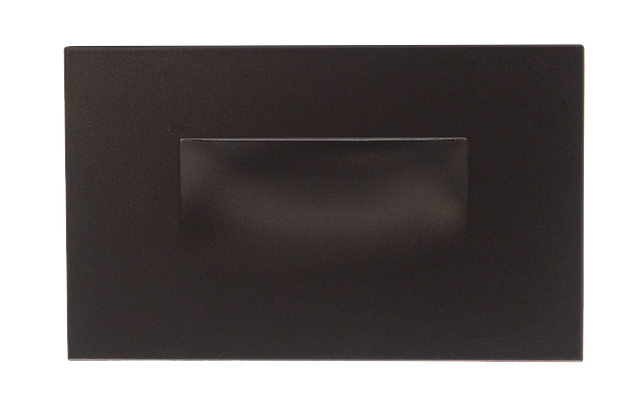

Step Light Horizontal Recessed LED
Terrain
SLHR is a horizontal recessed LED step light ideal for new construction applications where low level glare free path lighting is desired. SLHR mounts to standard junction boxes, is wet location listed, and IP65 rated. SLHR is offered in four finishes and multiple CCTs including a field selectable 3CCT option.
SLHR is a horizontal recessed LED step light ideal for new construction applications where low level glare free path lighting is desired. SLHR mounts to standard junction boxes, is wet location listed, and IP65 rated. SLHR is offered in four finishes and multiple CCTs including a field selectable 3CCT option.
Availability
- Portal Stock
Beam Angle
- 90
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 90
Color / Finish
- Black
- Silver
- White
Dimensions
- L: 4.8 In. W: 2.9 In. H: 0.3 In.
Dimming Protocol
- Triac (Leading Edge)
Efficacy
- 18.3
- 26.7
- 36.7
Lamp Life
- 30000
Lamp Source
- LED
Listings
- CE
- ETL
Lumens
- 55
- 80
- 110
Materials
- Aluminum
- Polycarbonate
Ratings & Compliance
- FCC
- IP65
- RoHS
- Wet
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 3
