Architectural Cylinder LED

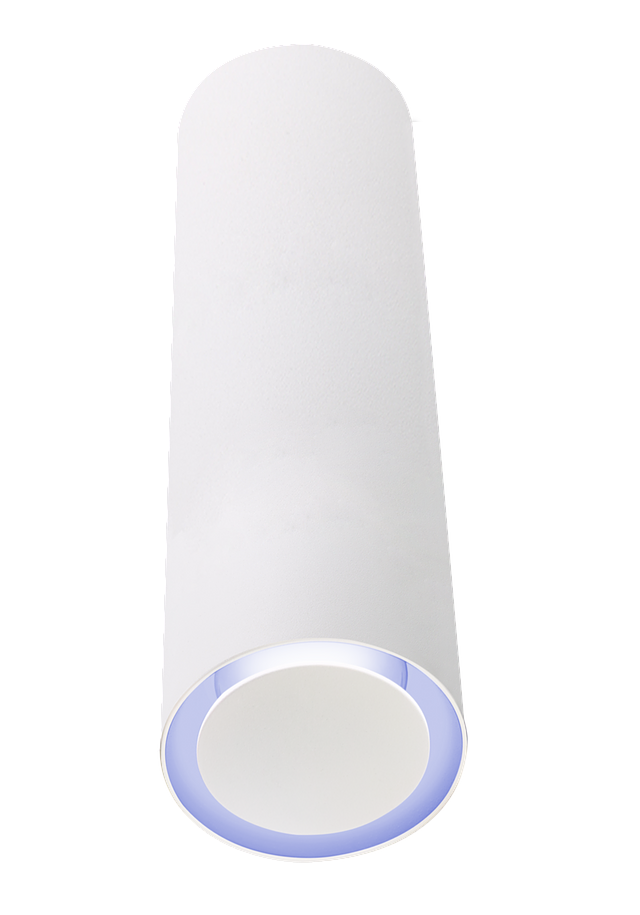

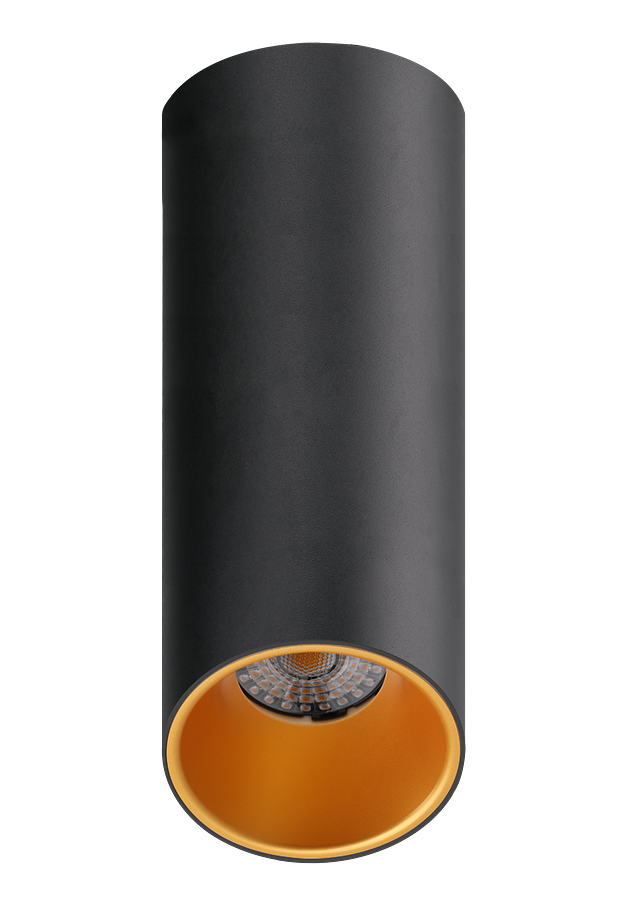

CRISP-3 is constructed from extruded aluminum with a powder-coated polyester finish available in black, white, or silver. The acrylic lens sits atop an interchangeable cylinder optic system, allowing beam spread and trim style to be swapped in the field without tools. The aluminum housing doubles as the light engine heatsink, maintaining controlled operating temperatures to support long-term LED performance.

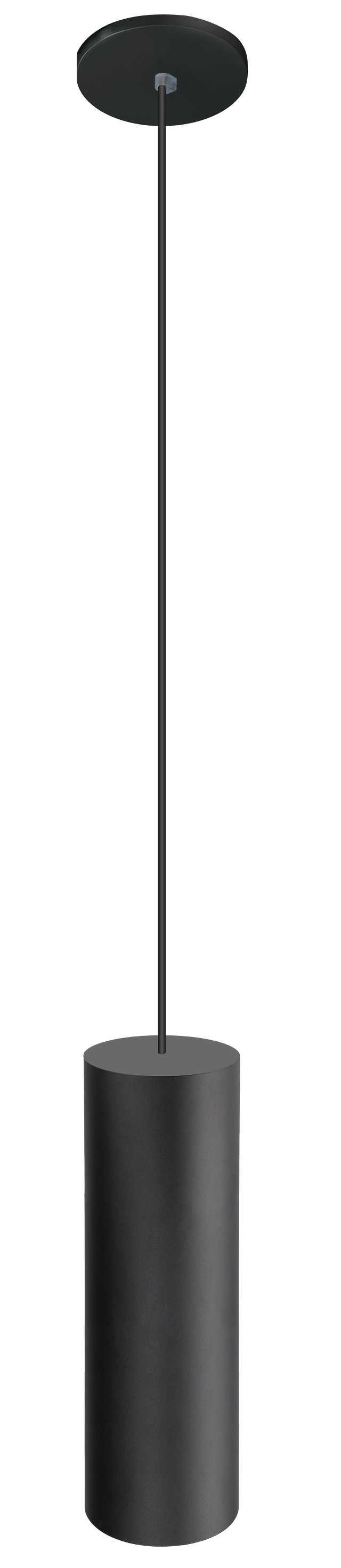

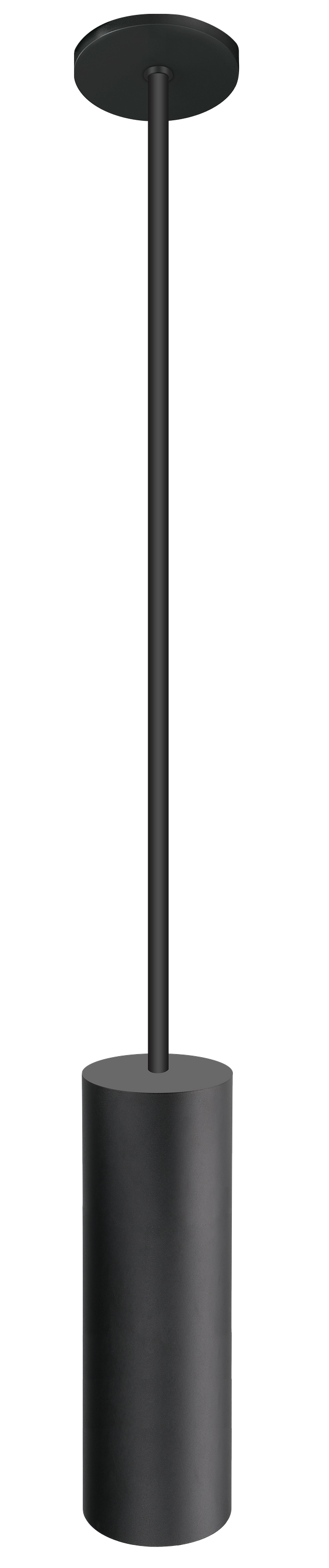

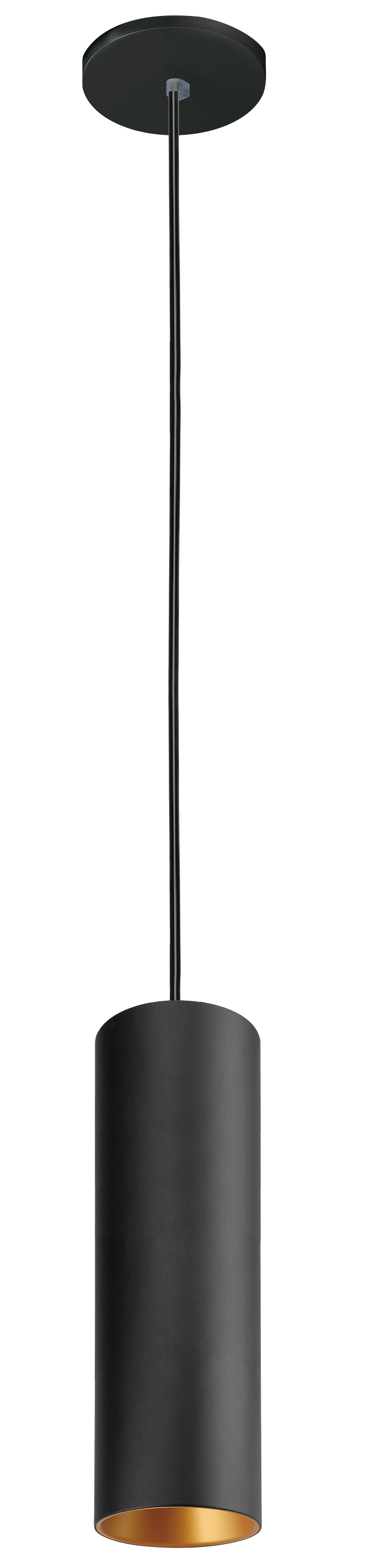

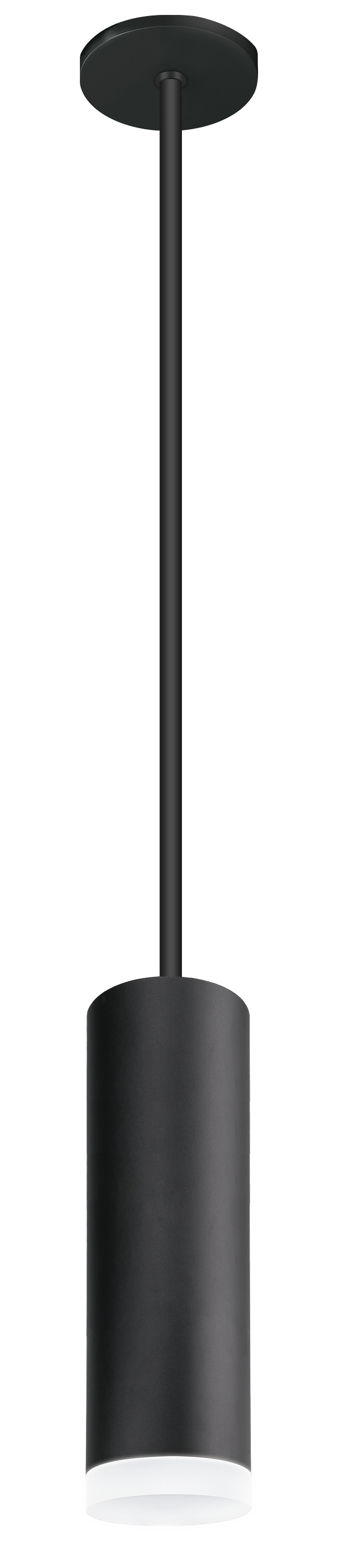

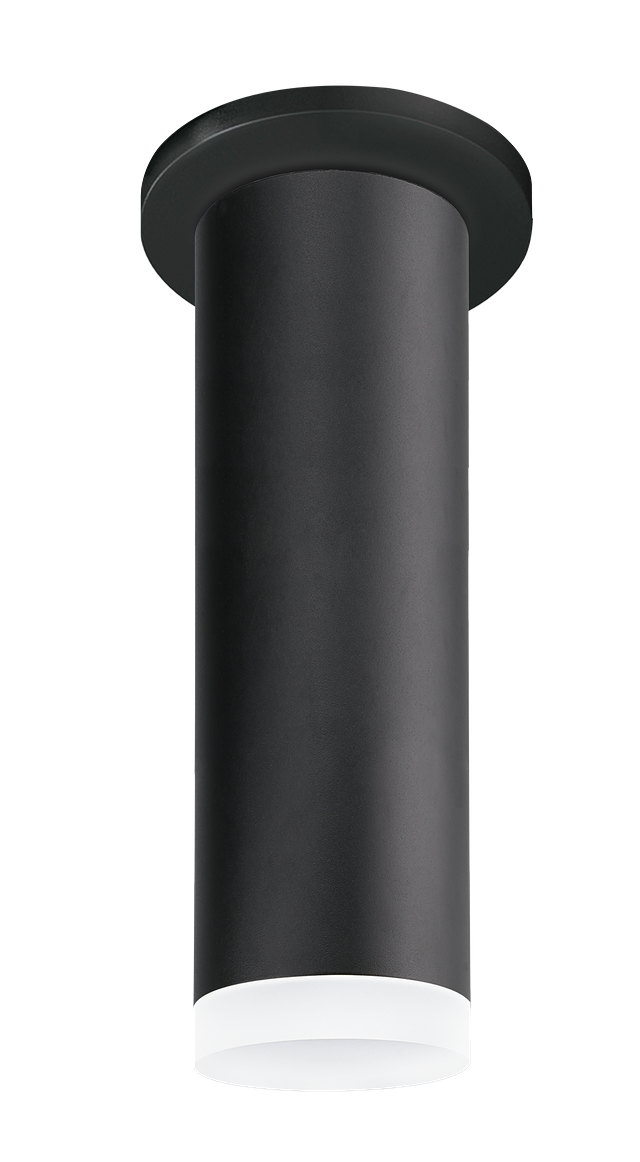

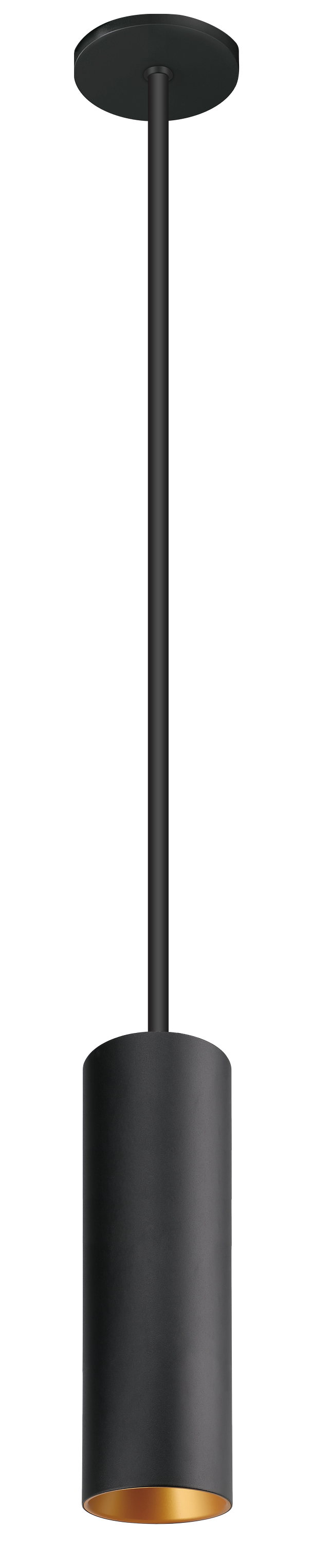

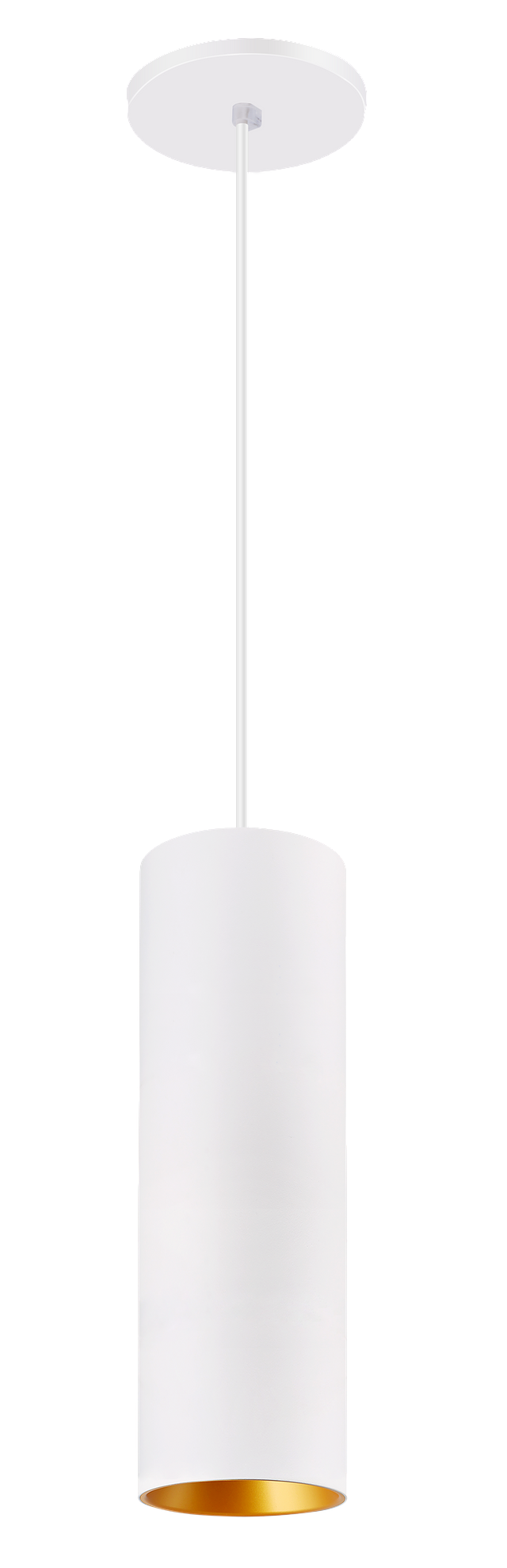

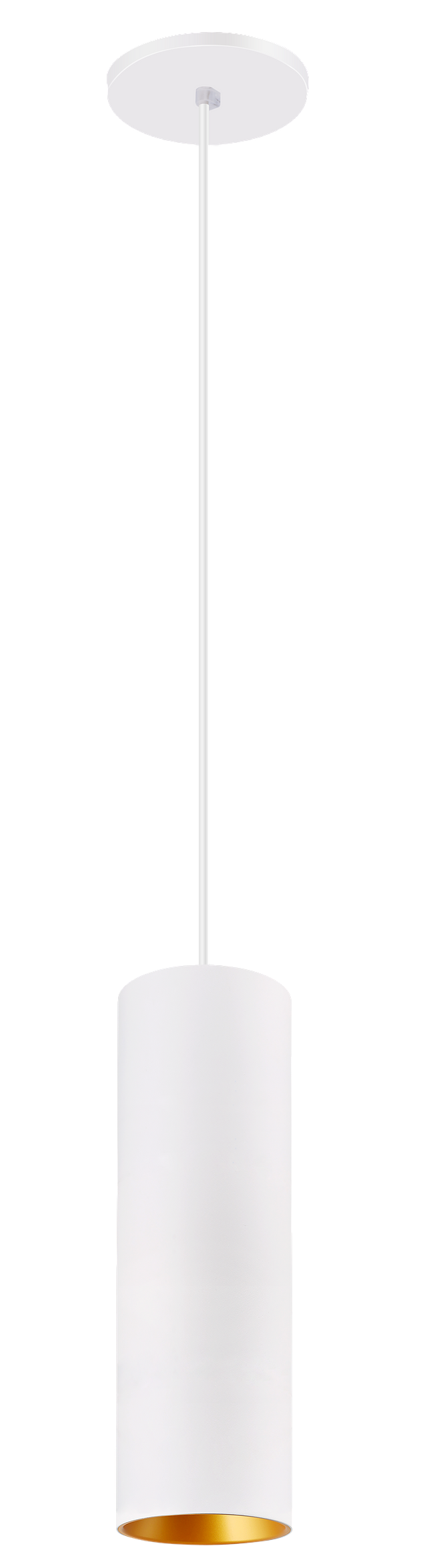

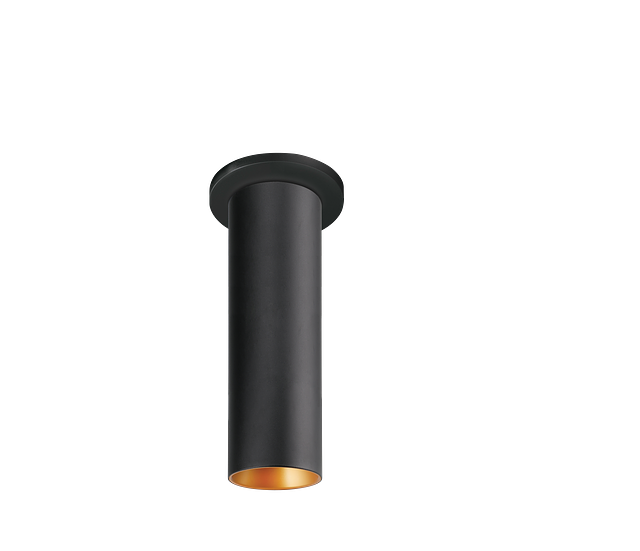

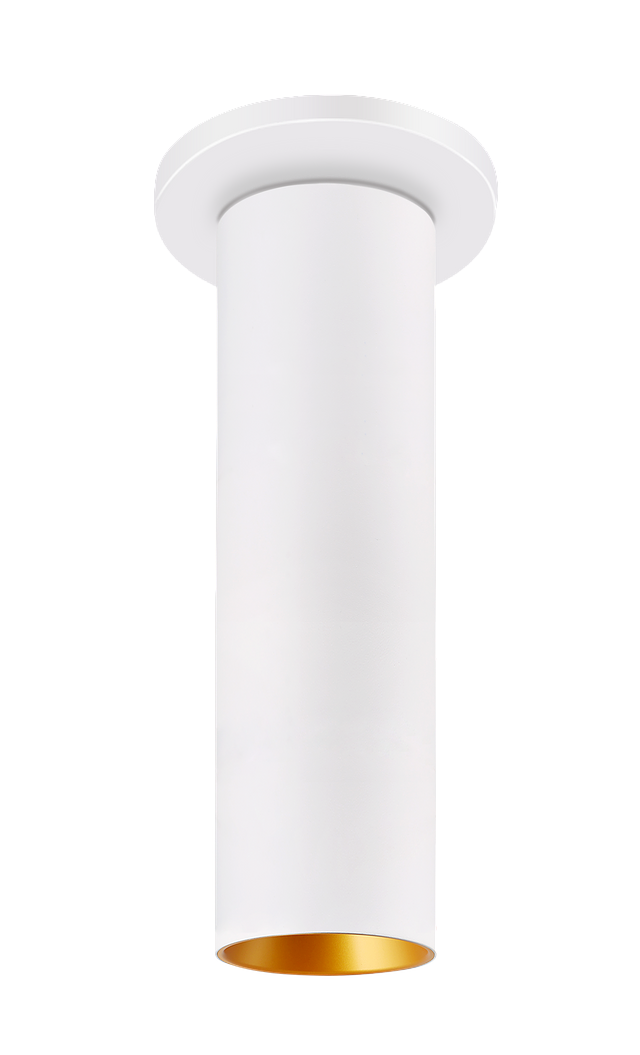

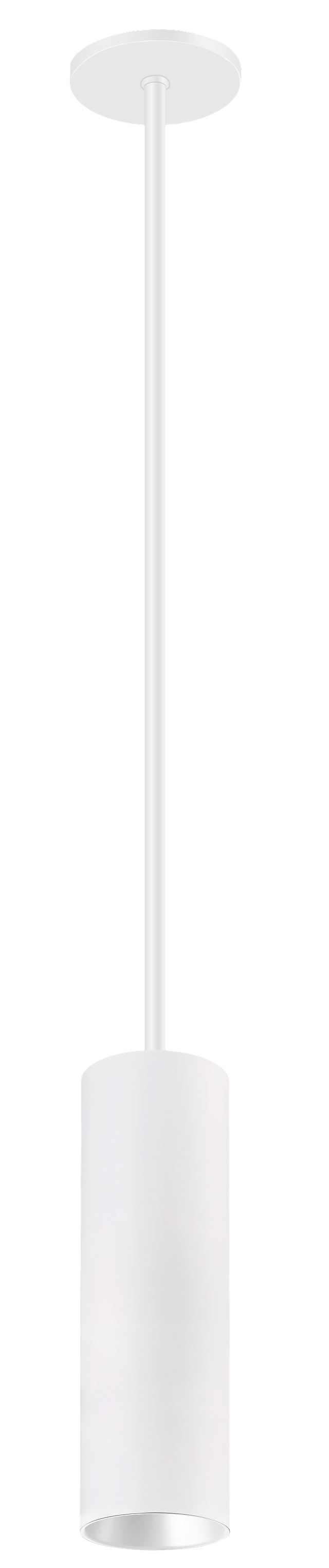

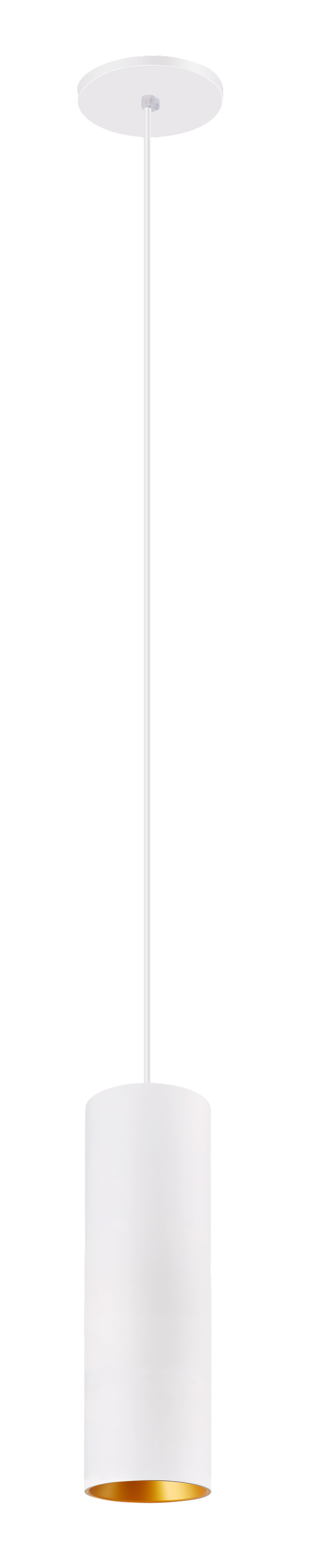

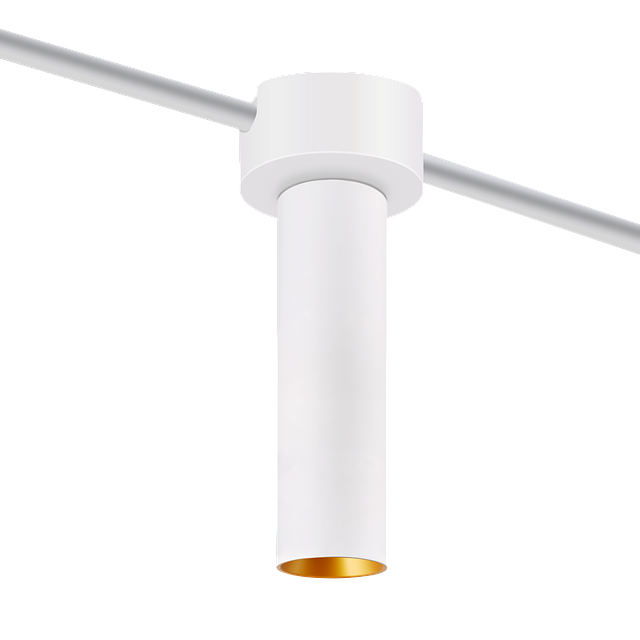

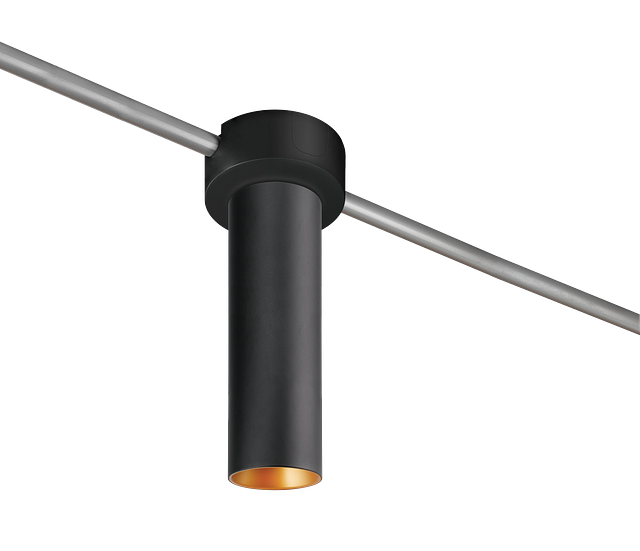

CRISP-3 supports pendant, surface, and wall-mount installation. Pendant units mount to recessed junction boxes via a flat canopy or to surface-mounted junction boxes via a deep canopy with integral conduit knockouts, and can be suspended on field-adjustable cable or a rigid stem — the rigid stem also accommodates sloped ceilings via an integral swivel canopy that tilts up to 30°. Surface-mount units install directly to recessed or surface junction boxes using the same canopy options. The fixture measures approximately 10" in overall length with a 2.96" housing diameter.

CRISP-3 operates on universal 110–277V AC input with a power factor greater than 0.9 and total harmonic distortion under 20%. Wattage is field selectable across six settings — 5W, 8W, 10W, 13W, 16W, or 19W — delivering between approximately 475 and 1995 lumens depending on wattage and beam angle selection, at efficacies ranging from roughly 80 to 120 lm/W. Color temperature is field selectable among 2700K, 3000K, 3500K, and 4000K fixed settings, or Dim-to-Warm operation transitioning from 3000K down to 2000K. CRI is 90+ on fixed CCT settings or 95+ on Dim-to-Warm, and beam angle is field selectable among 15°, 24°, 36°, and 60° options. The fixture supports 0–10V dimming to 1% or Triac dimming to 10%.

Choosing a color temperature:
CRISP-3's field-selectable CCT covers four fixed settings from 2700K through 4000K, letting a single SKU serve applications ranging from warm, residential-feeling common areas to crisper, task-oriented classroom and office environments. The Dim-to-Warm option is worth considering for spaces where the fixture will be dimmed regularly — lobbies, conference rooms, and civic gathering spaces — since it shifts color temperature warmer as light output is reduced, mimicking the behavior specifiers and end users expect from incandescent sources.

Understanding beam angle and interchangeable optics:

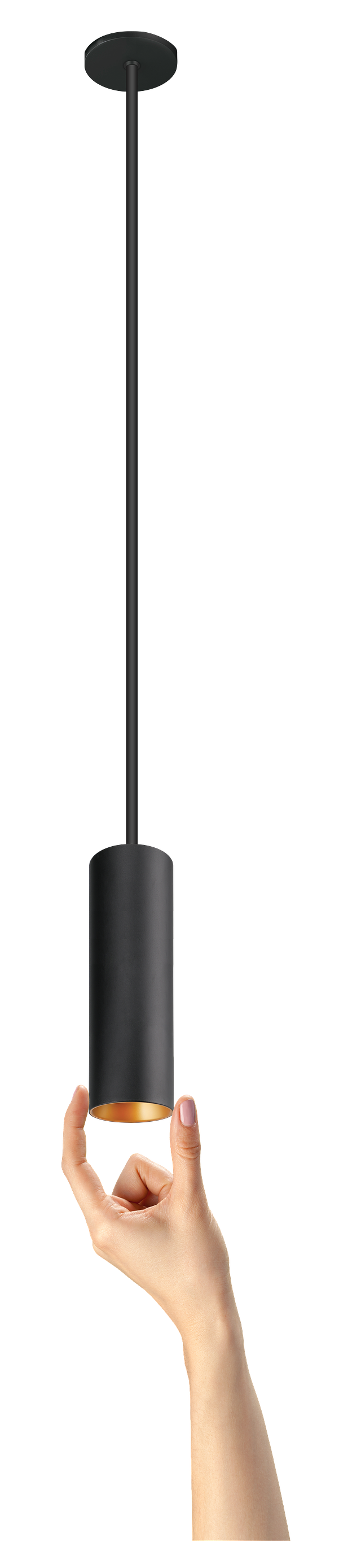

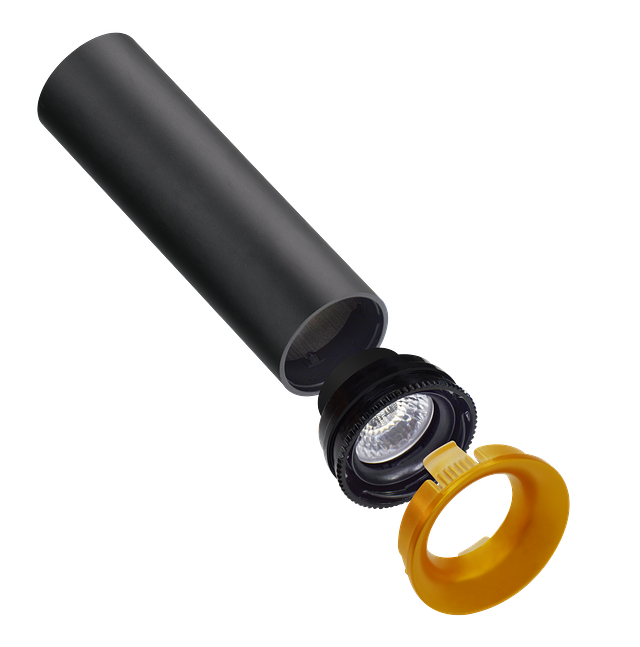

CRISP-3's four beam angle options — from a tight 15° spot to a broad 60° flood — are built around a cylinder optic system that can be swapped in the field without tools. This means a single housing can be reconfigured on-site if a project's lighting design calls for a different beam spread than originally specified, reducing the risk of a mismatched order requiring a return.

Mounting versatility:

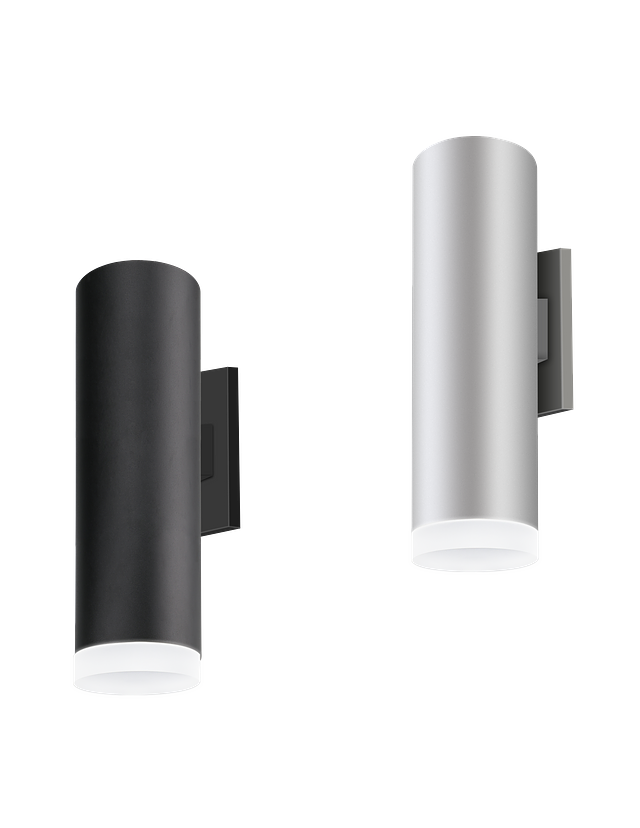

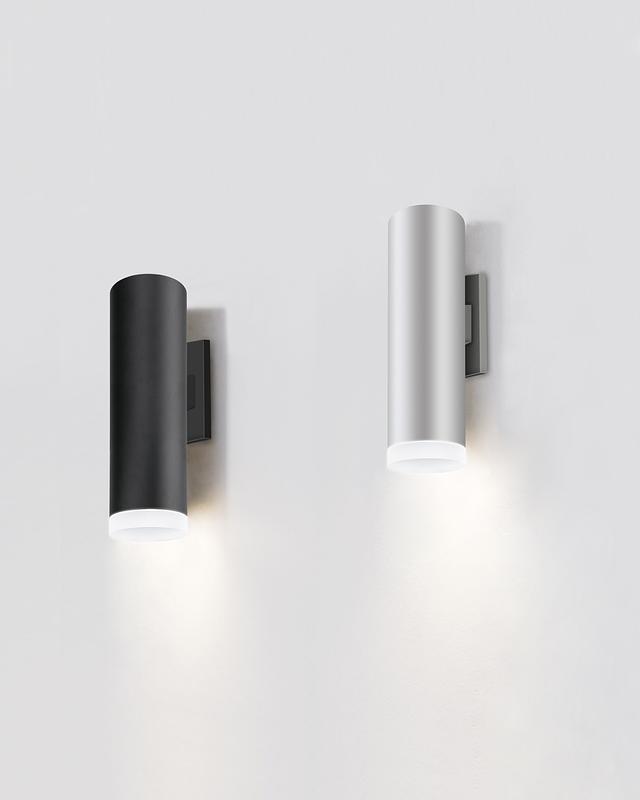

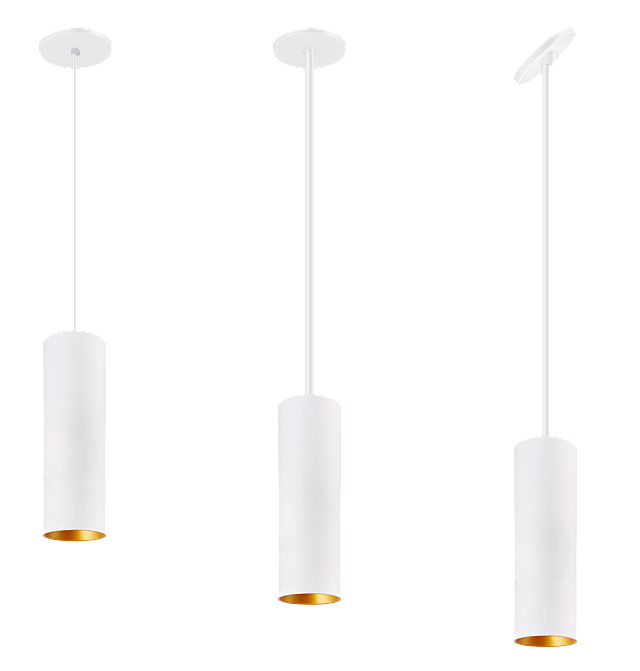

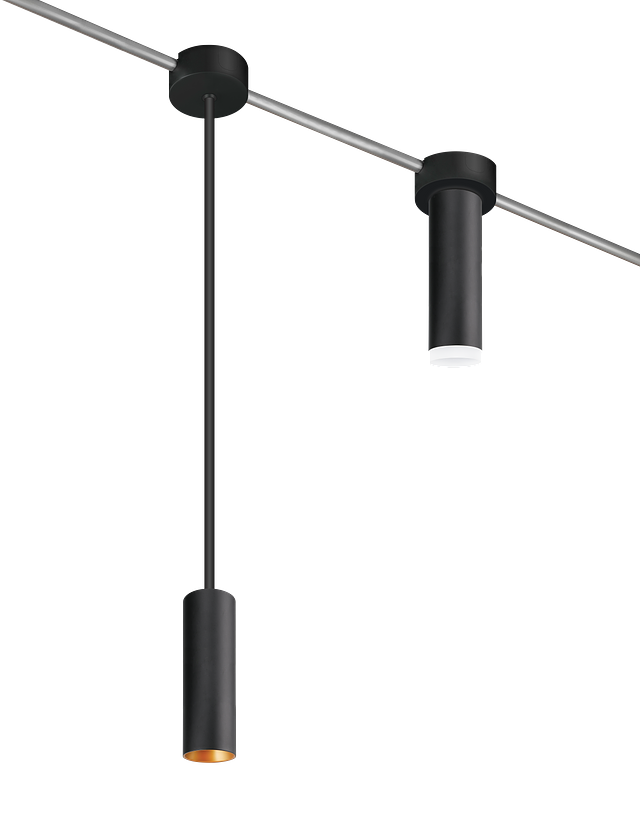

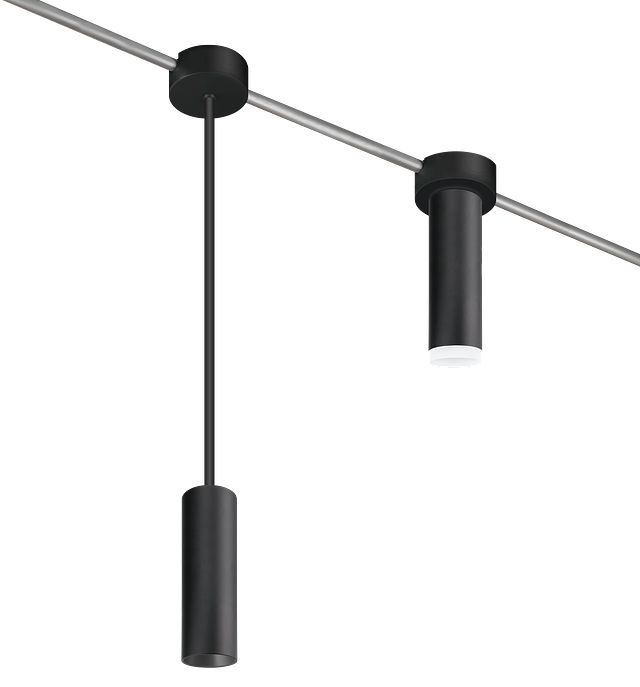

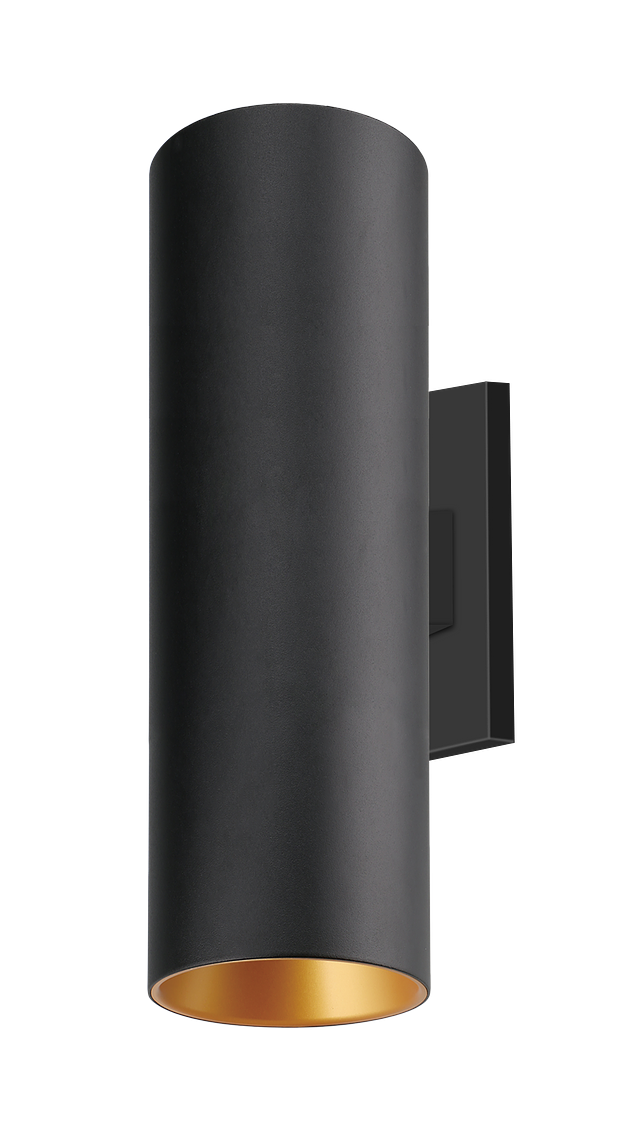

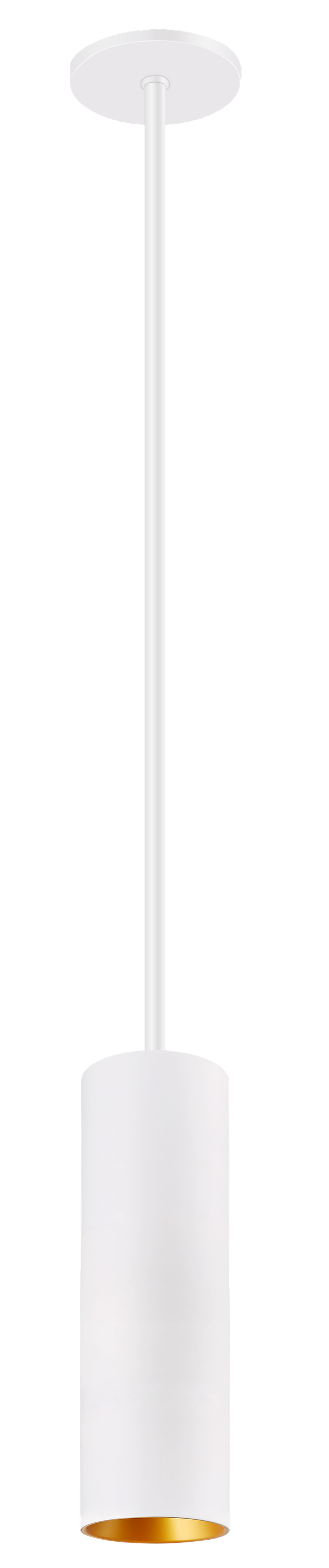

CRISP-3 is available in pendant, surface, and wall-mount versions, all built on the same core housing and optic system. Pendant installations support both cable and rigid stem suspension in four length options, with the rigid stem rated for sloped ceiling applications up to a 30° tilt. This shared platform simplifies specification across a project with mixed mounting conditions while maintaining a consistent fixture appearance throughout.

Trim and accessory options:

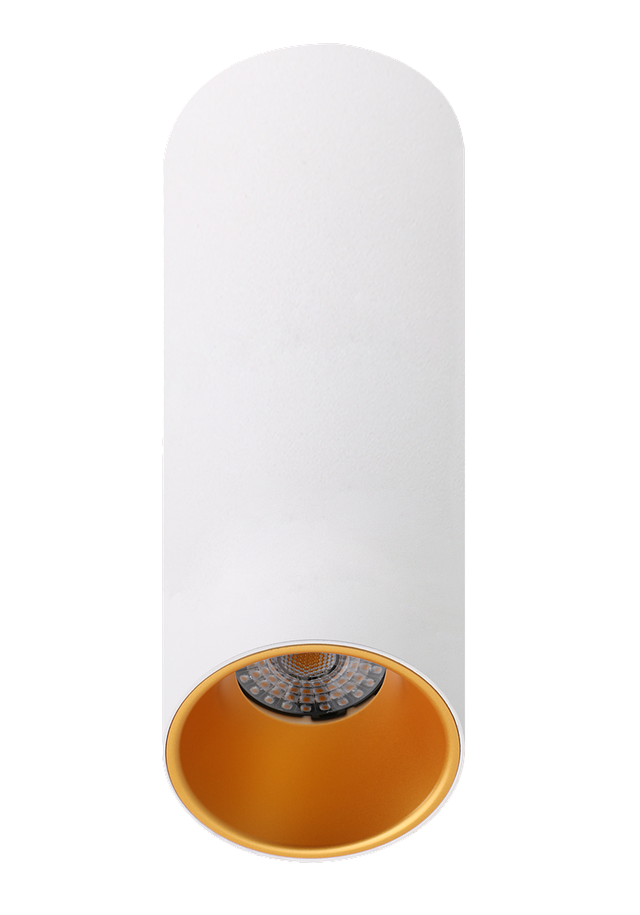

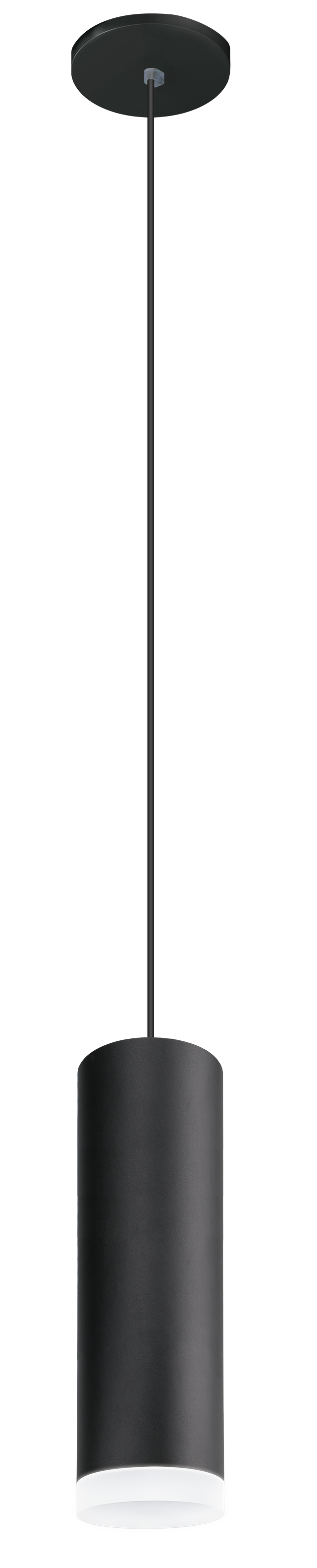

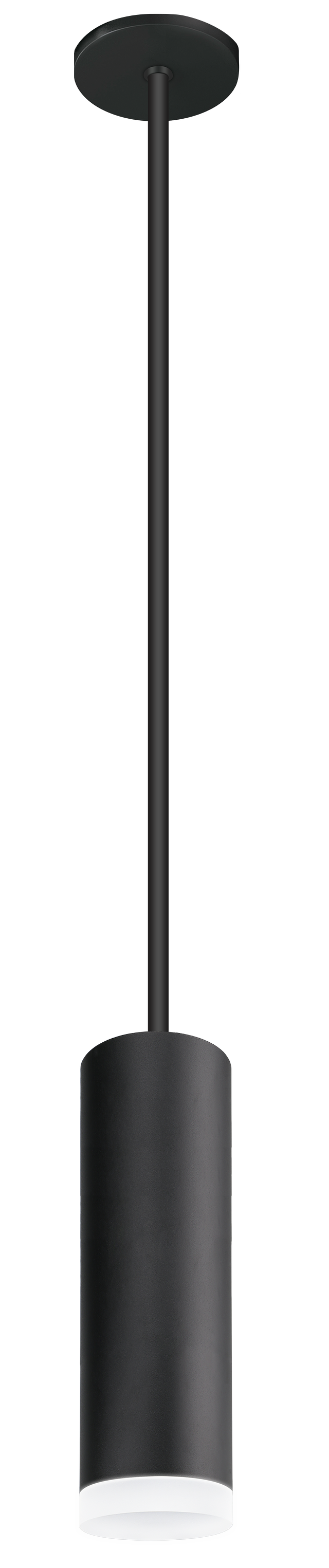

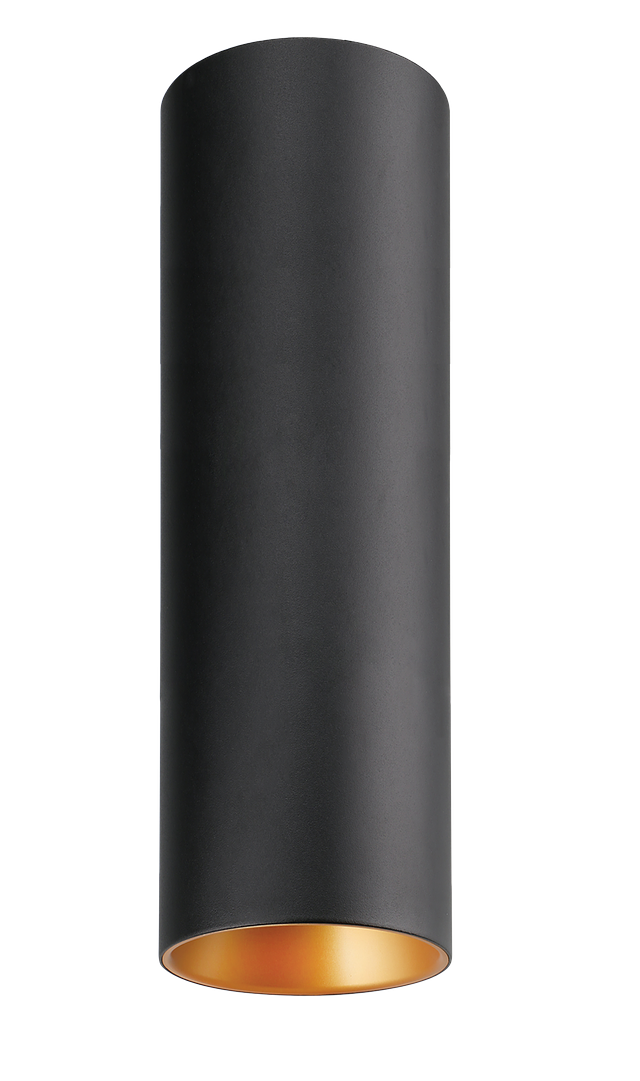

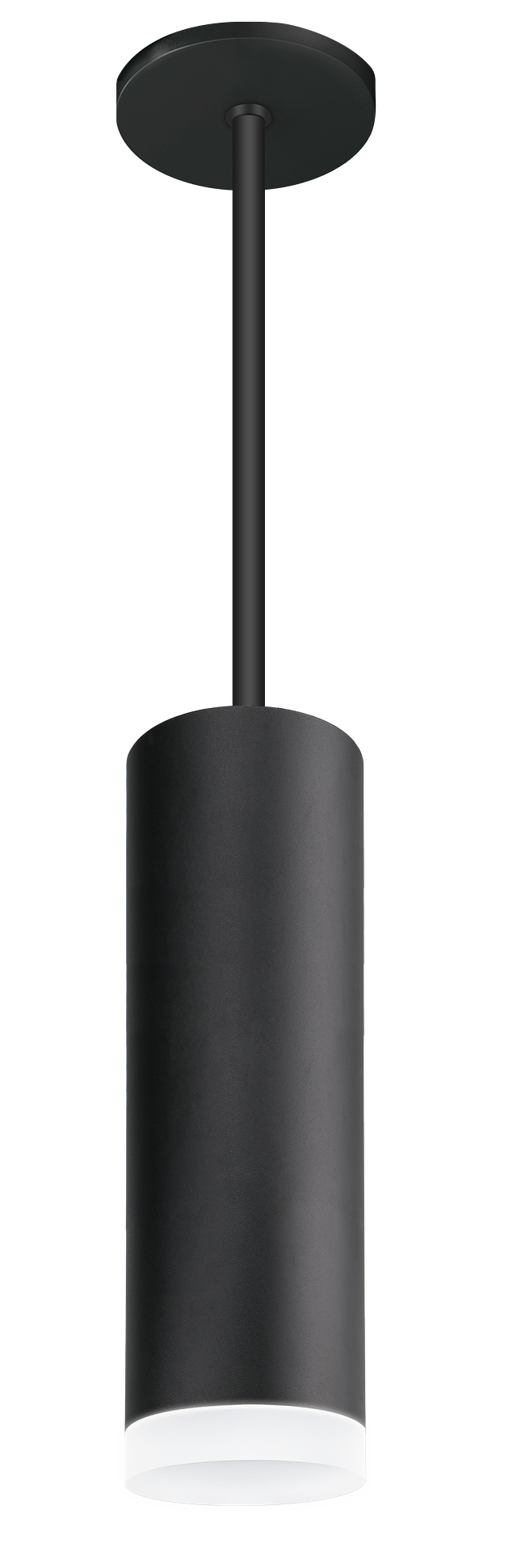

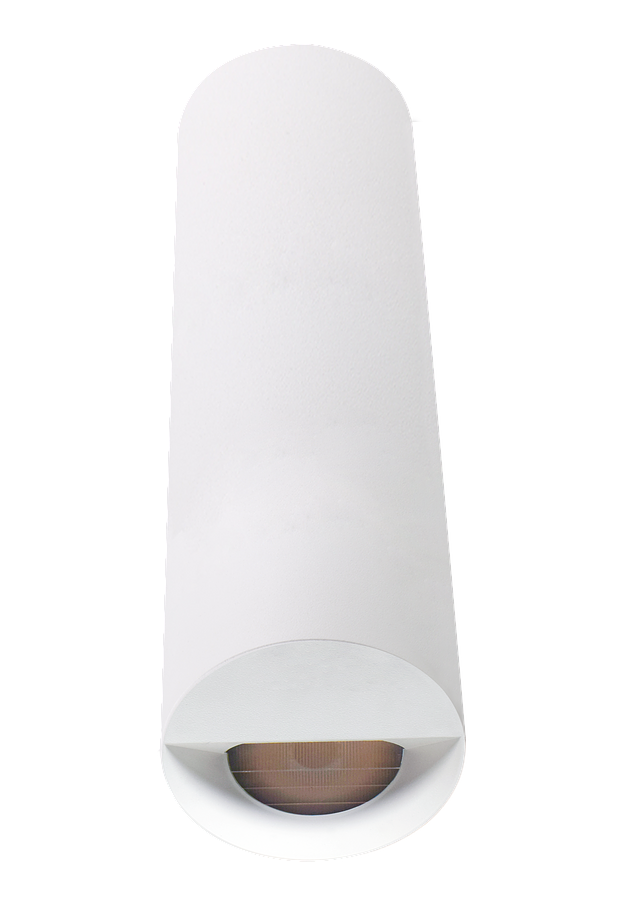

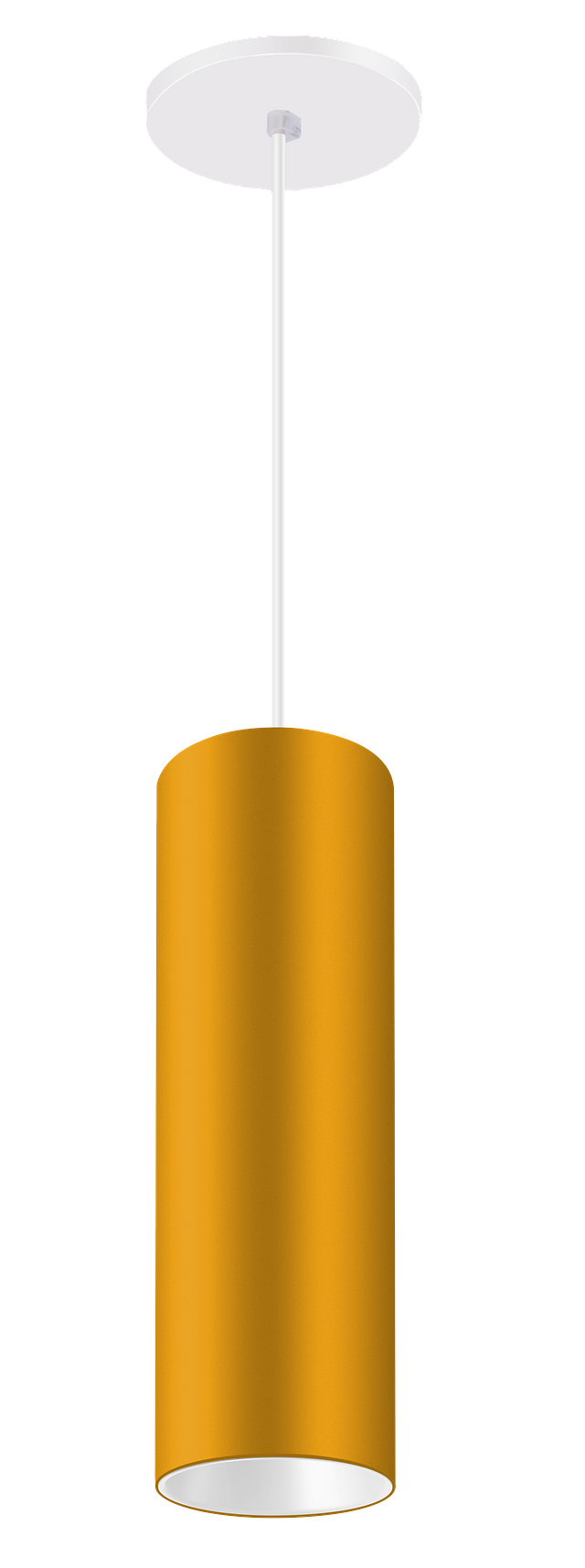

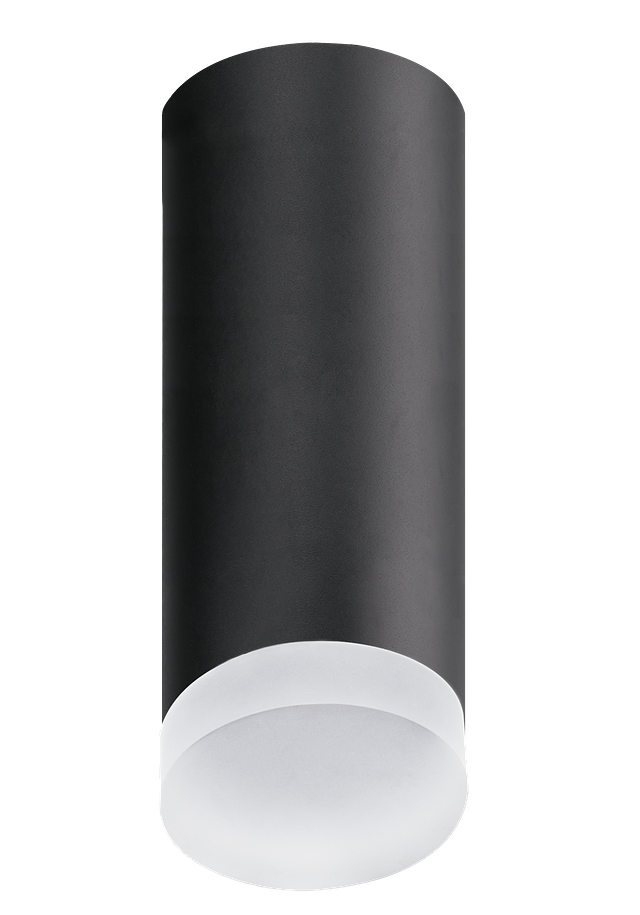

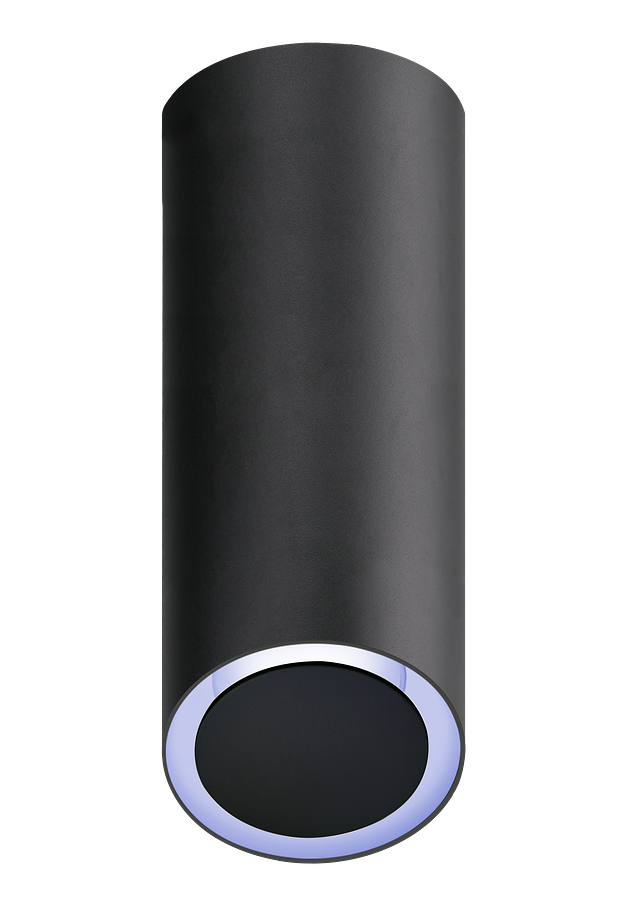

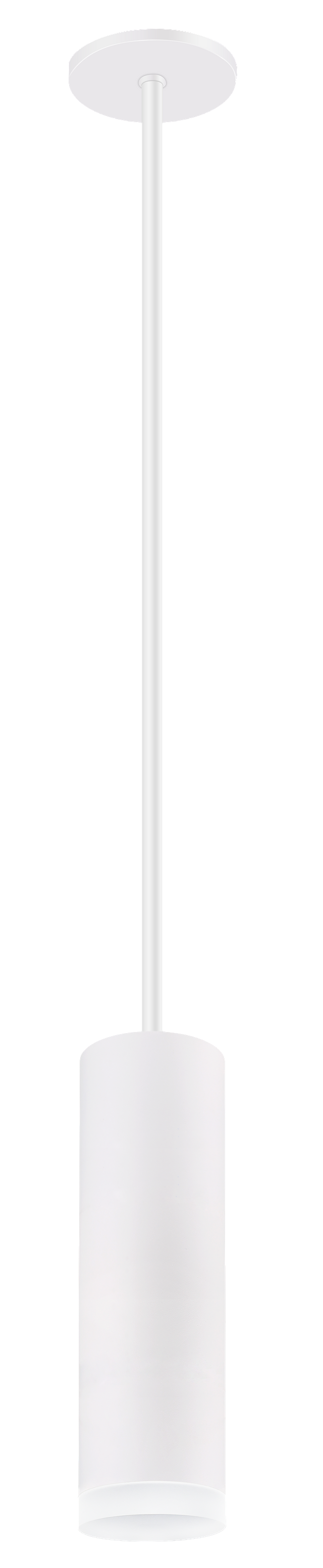

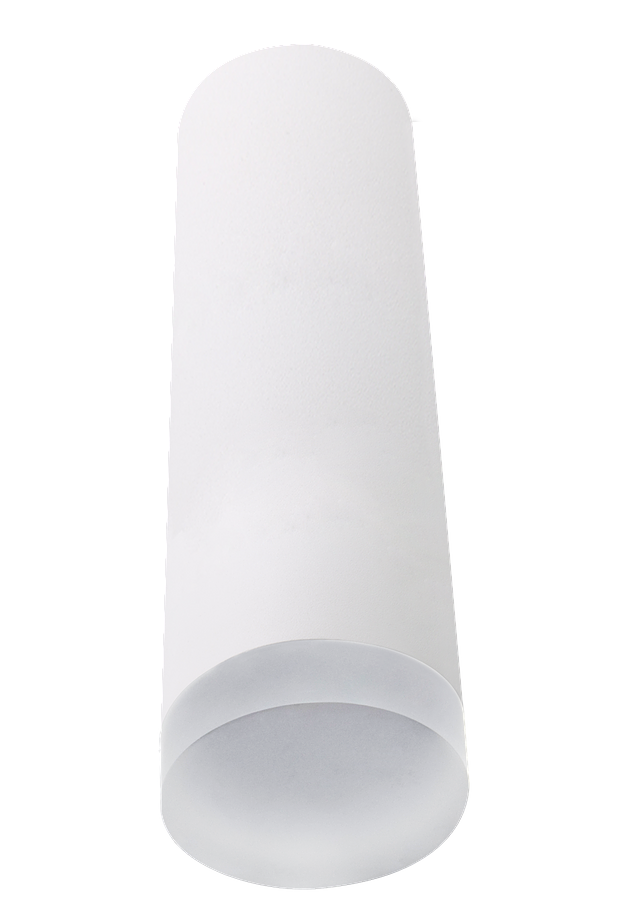

Beyond the standard round open trim, CRISP-3 is available with a wall wash trim for grazing vertical surfaces, a frosted drop lens for softer, more diffuse output, and a honeycomb accessory for additional glare control on open trims. Decorative face plate kits in several accent colors are also available as separate accessories, offering a way to introduce a branded or design-forward color accent without changing the base fixture finish.

Ordering logic:
CRISP-3 uses the format CRISP-3-[CCT]-[Beam Angle]-[Housing Finish]-[Trim]-[Mounting Type]-[Cable or Stem Length]. For example, CRISP-3-27-15-BK-BK-PR-2CBK specifies a 2700K, 15° beam angle unit in black housing and black round open trim, configured as a pendant with flat canopy on a 2' black cable mount. Accessories such as the honeycomb insert or decorative kits are ordered separately using the format CRISP-3-[Accessory Code].

Finish selection:

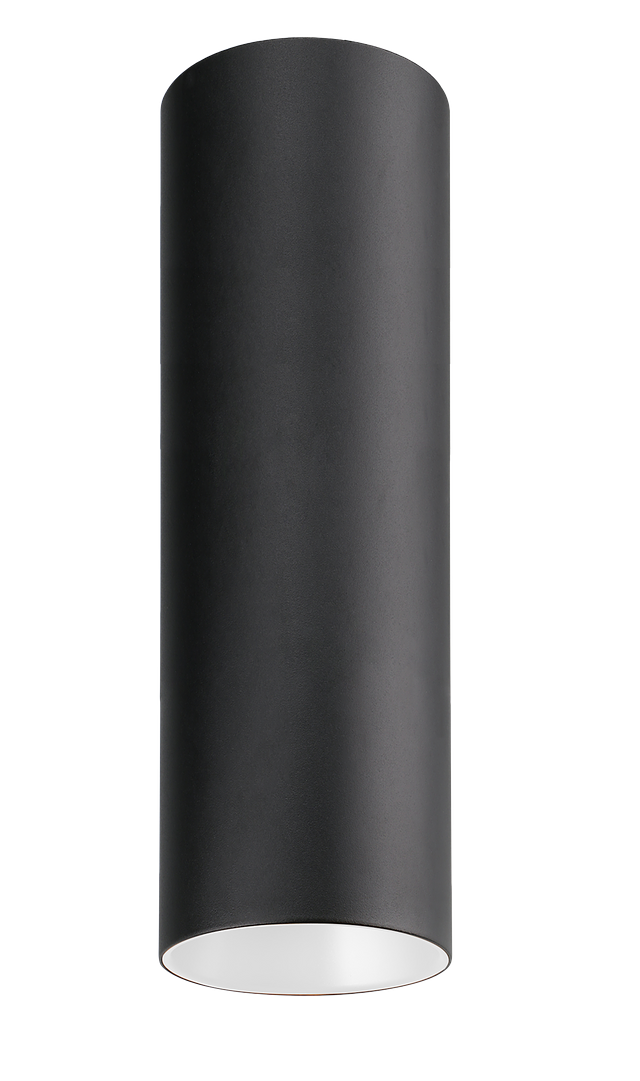

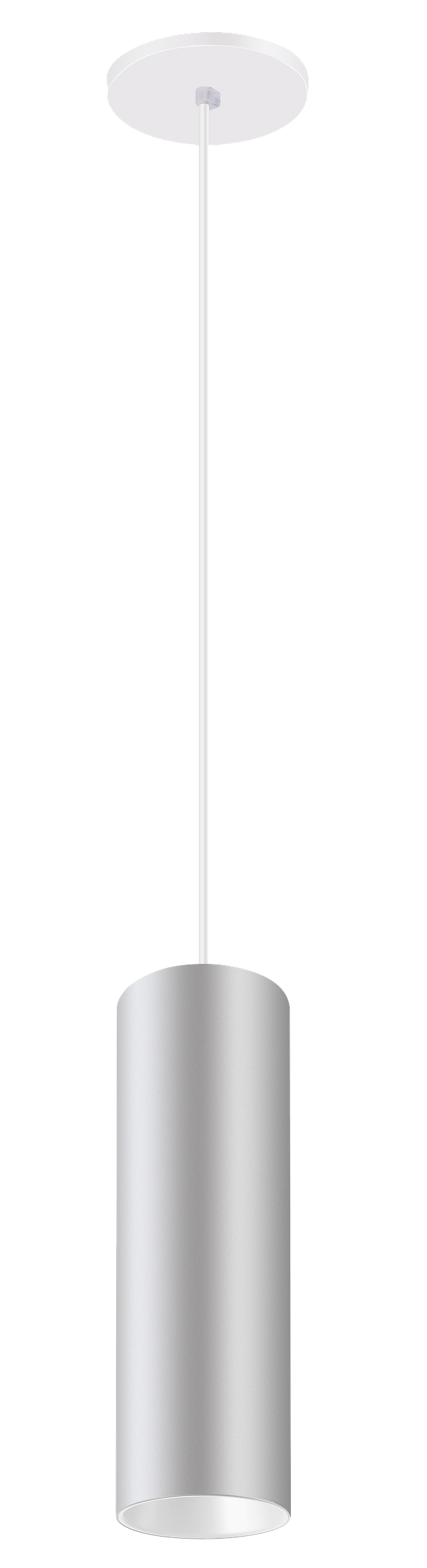

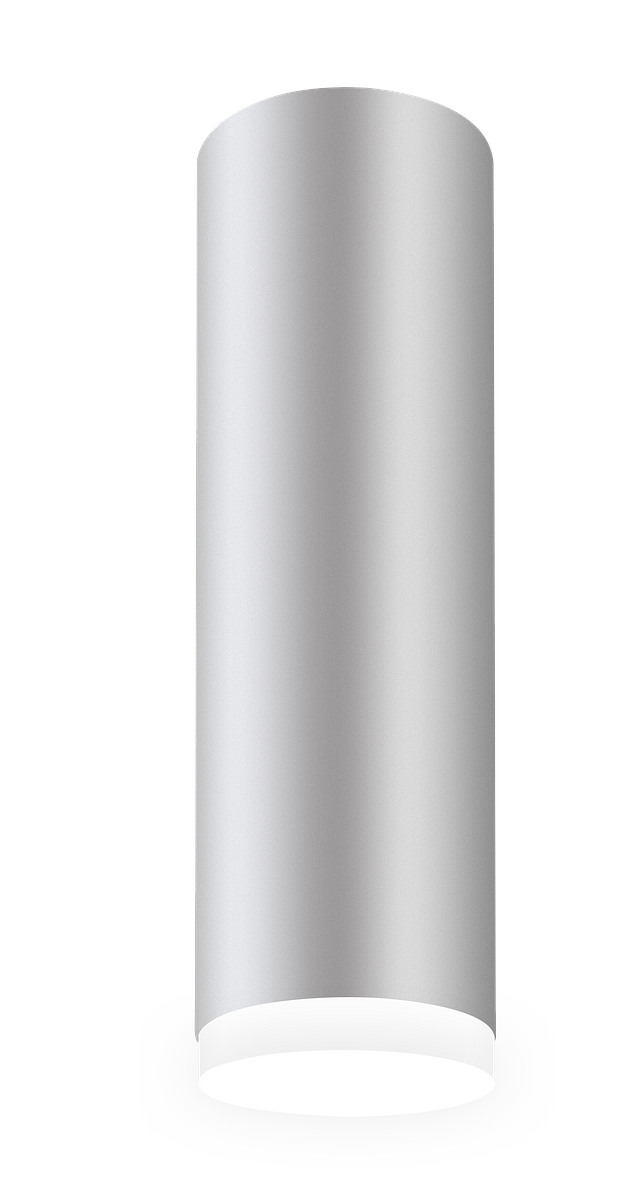

Black and white housing finishes offer straightforward integration into most commercial ceiling and wall conditions, with black suited to applications where a low-visibility, recessed appearance is preferred and white suited to brighter, more open environments. Silver offers a more industrial or contemporary appearance, and pairs well with exposed structure or metal-forward interior palettes.
