JAX
New Product
Unit Number Sconce LED
Dunton House

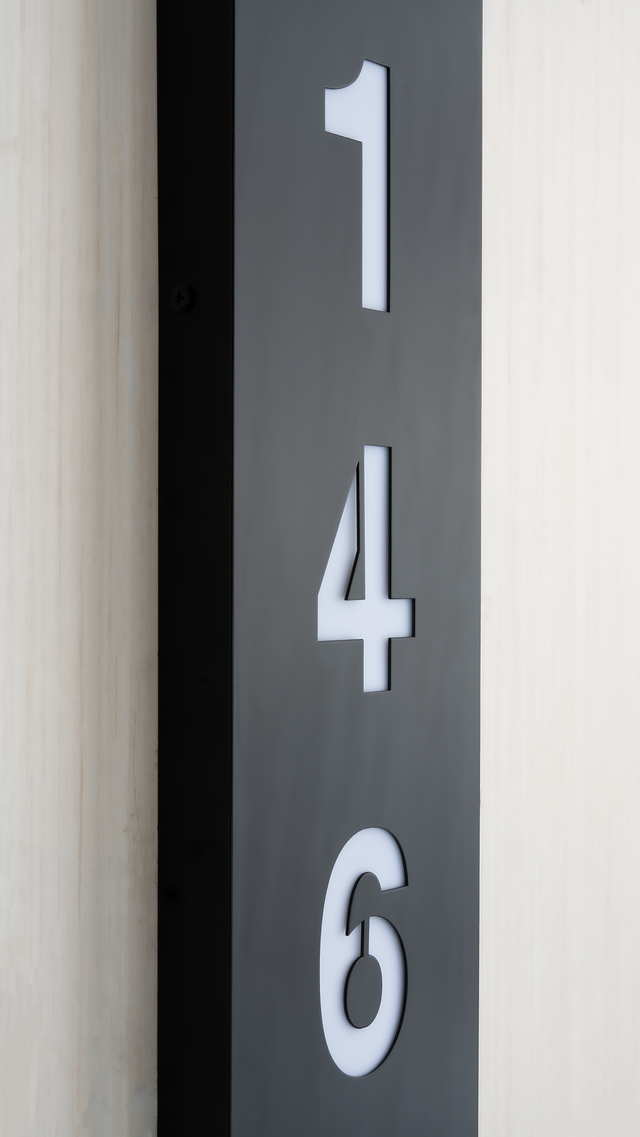

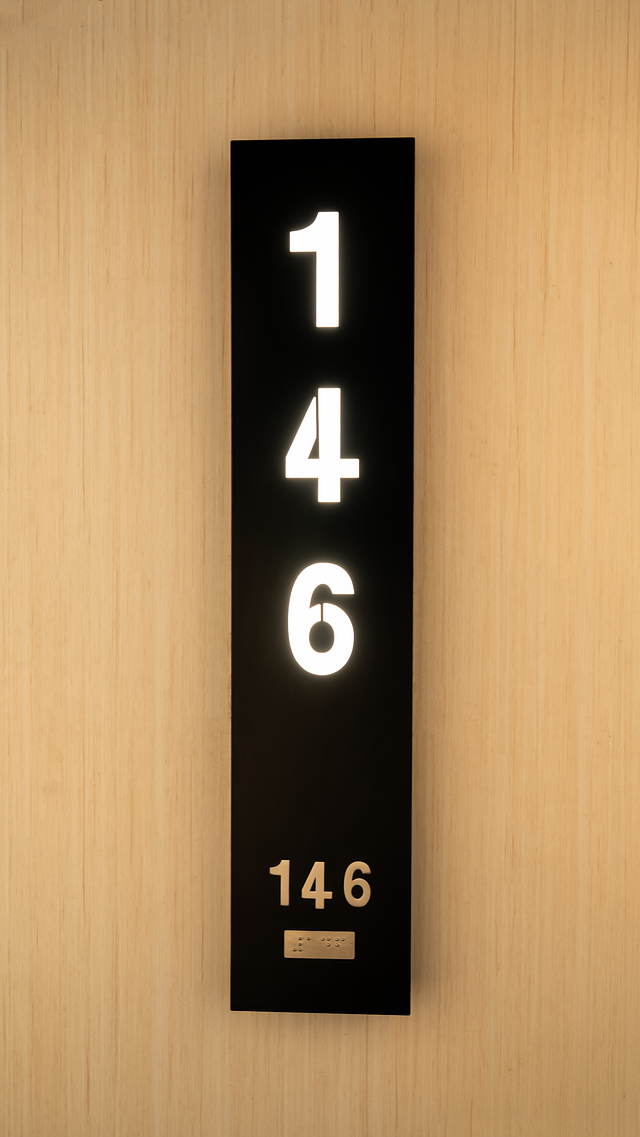

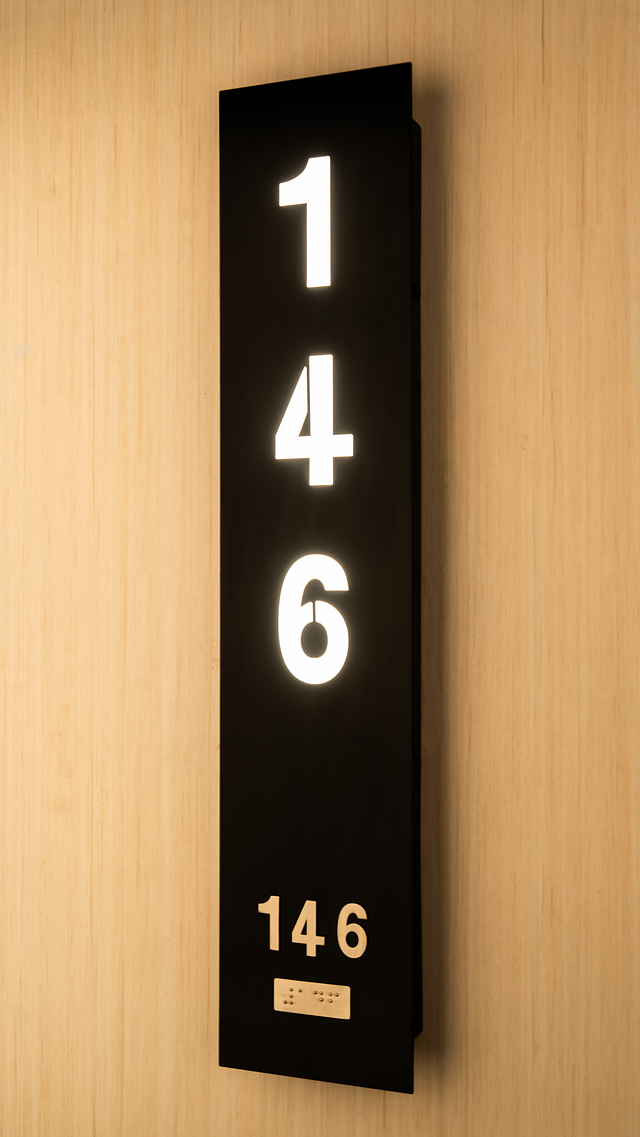

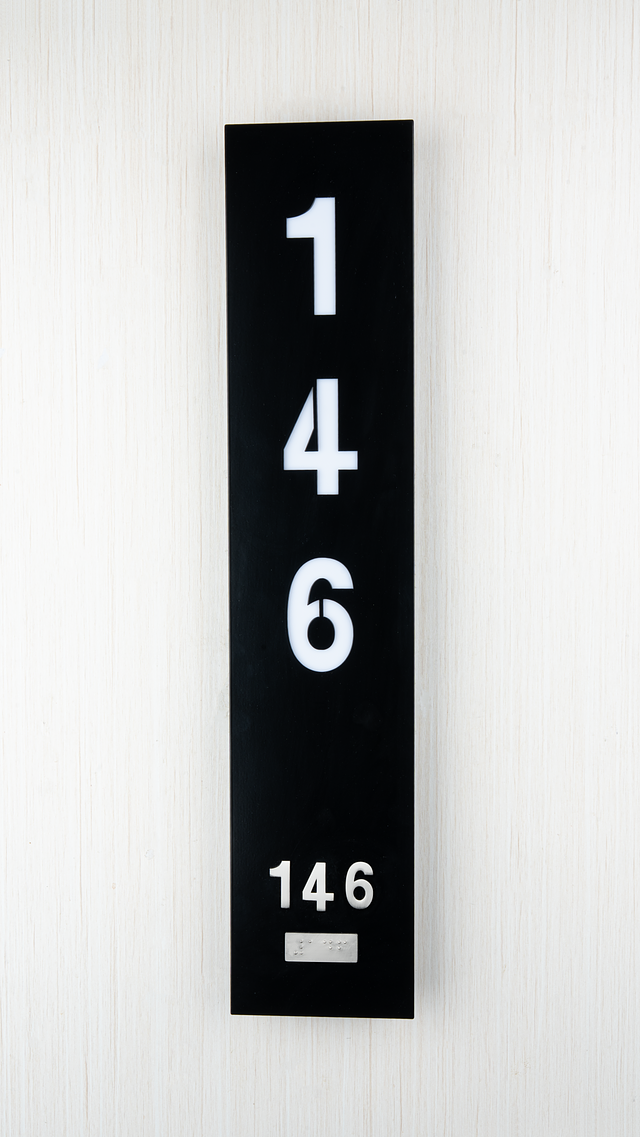

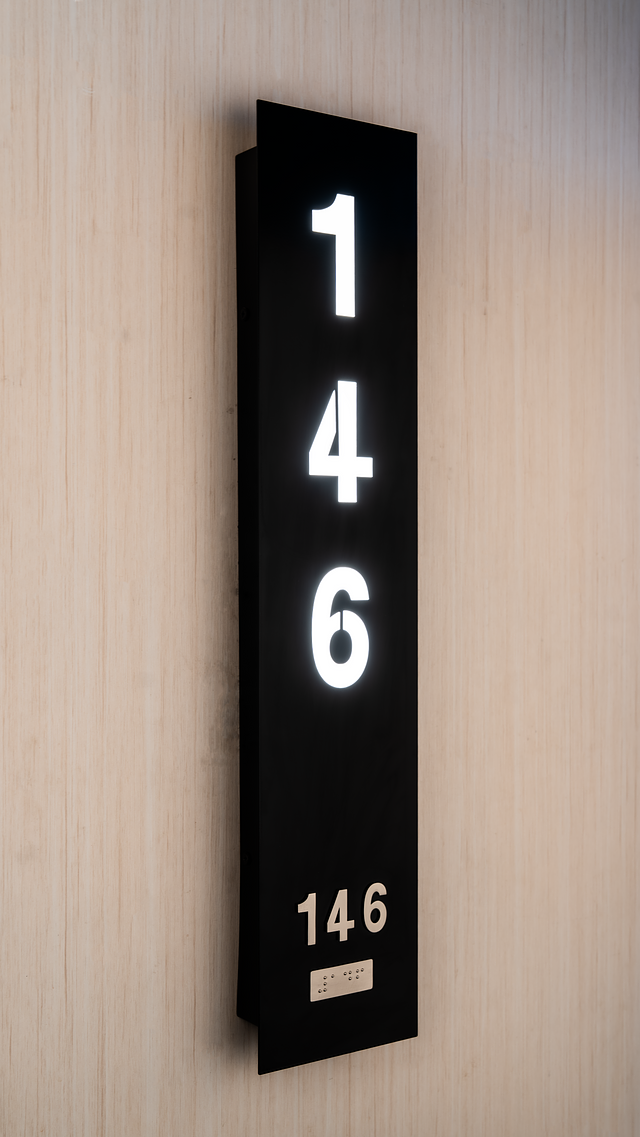

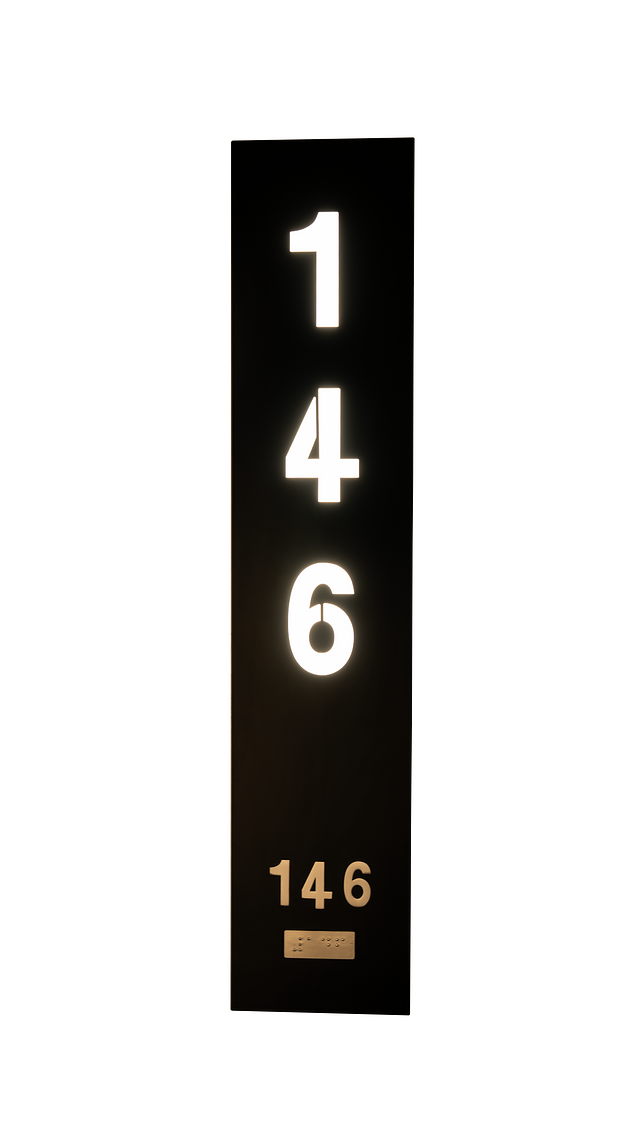

The JAX Unit Number Sconce LED is a purpose-built identification fixture from Dunton House Decorative Lighting, designed to mark units, suites, or addresses with clarity and a refined architectural edge. Its slim vertical housing holds up to three illuminated digits, with the option to add a smaller illuminated street or unit number near the base — giving property teams a single fixture that handles both primary and secondary identification needs.
Beyond legibility, JAX is built for accessible design. It carries ADA compliance and offers an optional integrated braille plate, allowing a single fixture to satisfy both visual and tactile wayfinding requirements without additional hardware. The acrylic lens diffuses the backlit numerals evenly, keeping the digits crisp and readable from a distance while avoiding hot spots or glare.
Construction is straightforward and durable, with a metal housing rated for damp locations — a practical fit for covered breezeways, exterior corridors, and other semi-protected settings where standard indoor fixtures fall short. Fixture and font finishes are independently selectable, giving specifiers the flexibility to coordinate JAX with a building's existing hardware palette or to create contrast between the housing and the numerals themselves.
Backed by a 5-year warranty and UL certification, JAX is engineered as a long-term wayfinding solution for multifamily, hospitality, and mixed-use properties where consistent, code-compliant unit identification matters across every entry point.
The JAX Unit Number Sconce LED is a purpose-built identification fixture from Dunton House Decorative Lighting, designed to mark units, suites, or addresses with clarity and a refined architectural edge. Its slim vertical housing holds up to three illuminated digits, with the option to add a smaller illuminated street or unit number near the base — giving property teams a single fixture that handles both primary and secondary identification needs.
Beyond legibility, JAX is built for accessible design. It carries ADA compliance and offers an optional integrated braille plate, allowing a single fixture to satisfy both visual and tactile wayfinding requirements without additional hardware. The acrylic lens diffuses the backlit numerals evenly, keeping the digits crisp and readable from a distance while avoiding hot spots or glare.
Construction is straightforward and durable, with a metal housing rated for damp locations — a practical fit for covered breezeways, exterior corridors, and other semi-protected settings where standard indoor fixtures fall short. Fixture and font finishes are independently selectable, giving specifiers the flexibility to coordinate JAX with a building's existing hardware palette or to create contrast between the housing and the numerals themselves.
Backed by a 5-year warranty and UL certification, JAX is engineered as a long-term wayfinding solution for multifamily, hospitality, and mixed-use properties where consistent, code-compliant unit identification matters across every entry point.
CCT
- 3000K
CRI
- 80
Color / Finish
- Black
- Custom
Dimensions
- L: 1.41 In. W: 5 In. H: 24 In.
Efficacy
- 55
Lamp Base
- Integrated
Lamp Life
- 50000
Lamp Source
- LED
Listings
- UL
Lumens
- 550
Materials
- Acrylic
- Metal
Ratings & Compliance
- ADA
- Damp
Shape
- Rectangular
Voltage
- 120 V
Warranty
- 5 yr
Watts
- 10
Resources

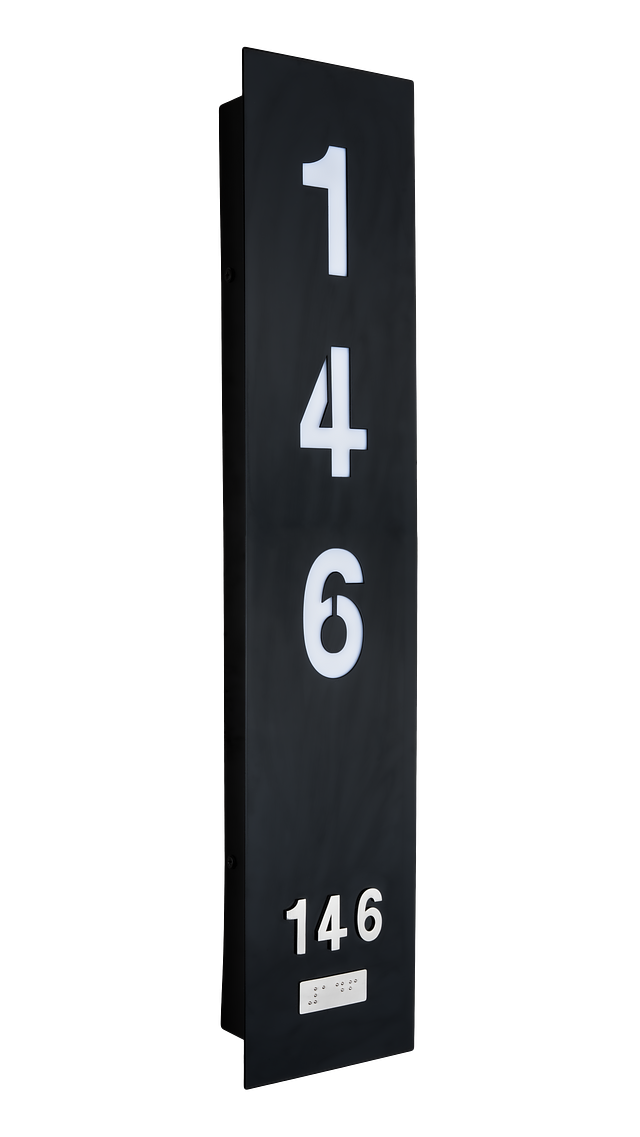

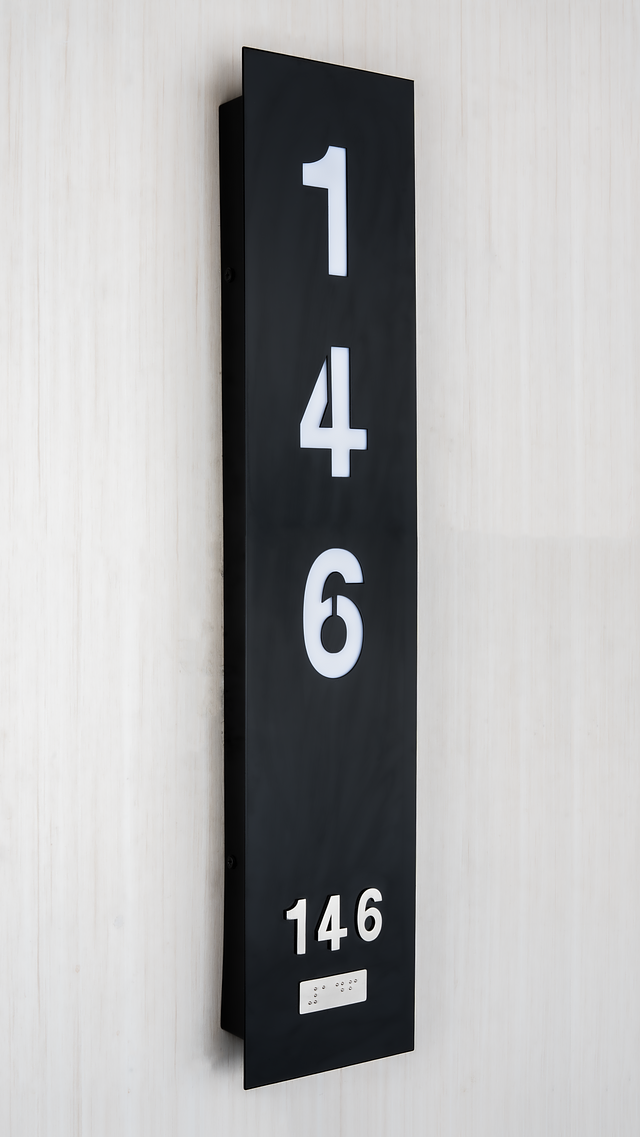

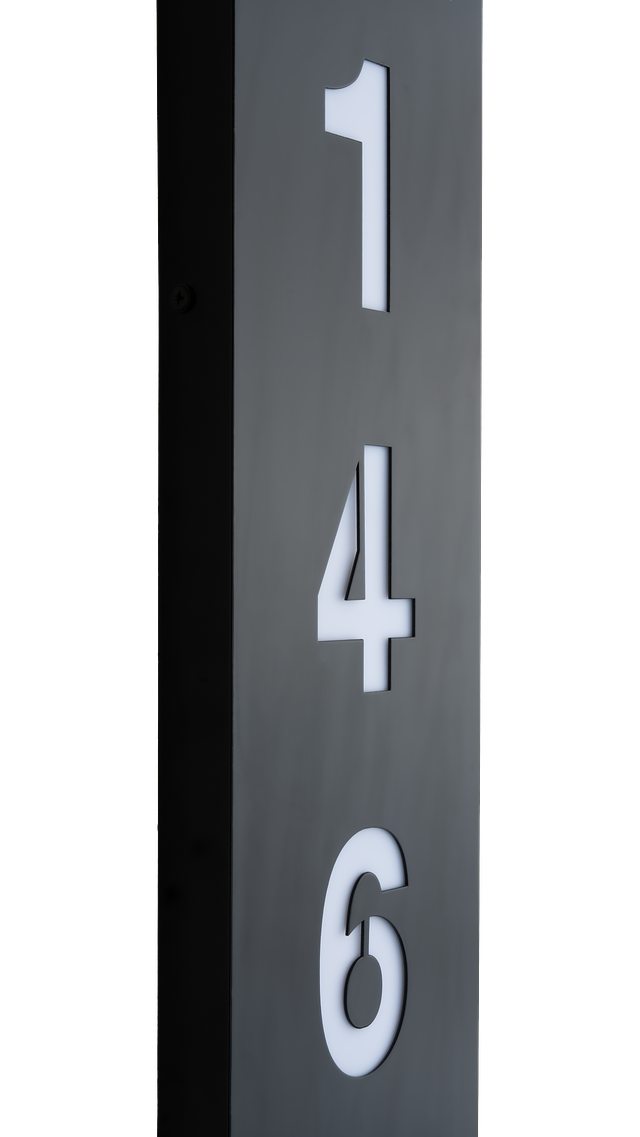

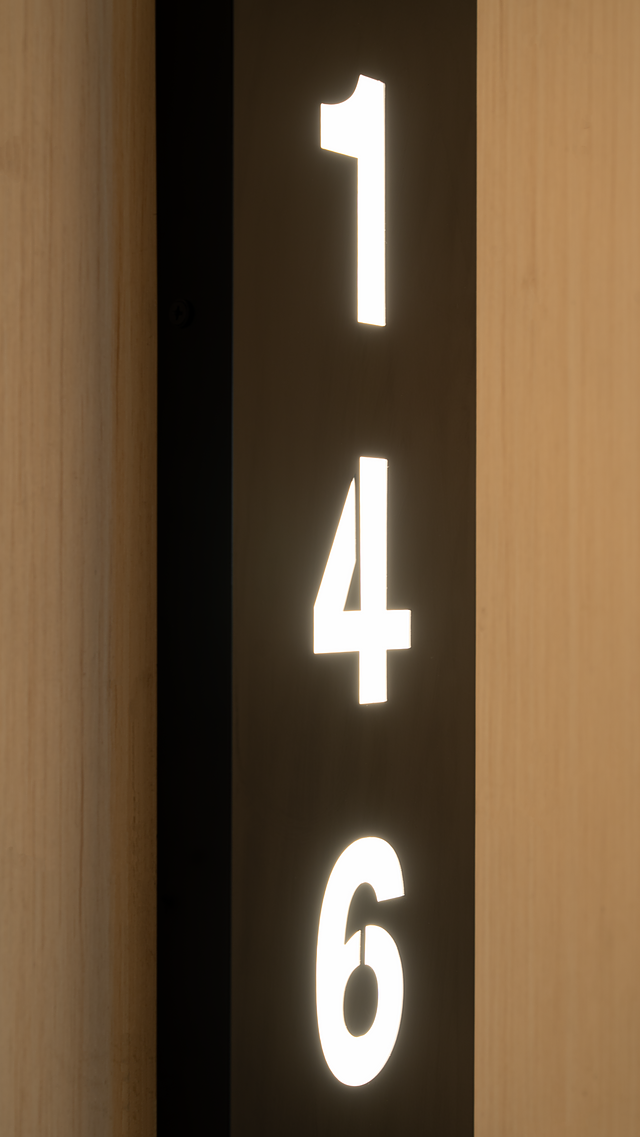

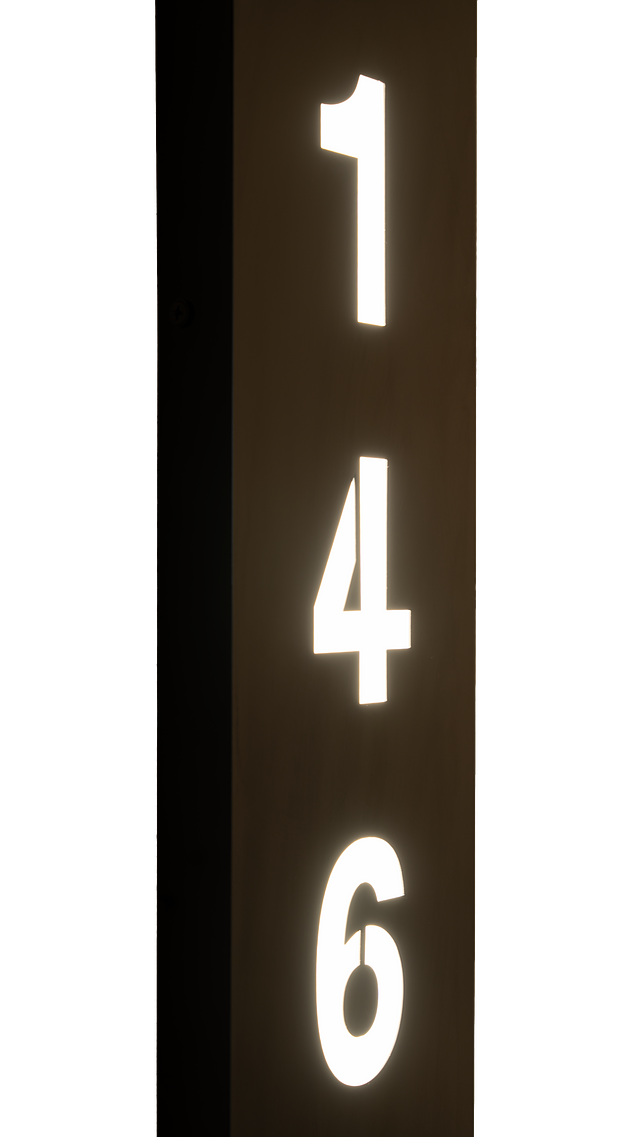

JAX is constructed with a metal housing and an acrylic lens that evenly diffuses the backlit numerals for consistent legibility. The fixture surface-mounts directly to the wall, with a slim 1-3/8" depth profile that keeps it close to the surface and unobtrusive in corridors and entry approaches.
Fixture finish and font finish are specified independently: the housing is available in a standard black finish or a custom finish specified by RAL number or sample, while the illuminated numerals are available in a standard brushed nickel finish or a matching custom option. This independent finish structure allows the housing to blend with or contrast against the surrounding wall and hardware, while the numerals remain distinct and legible.

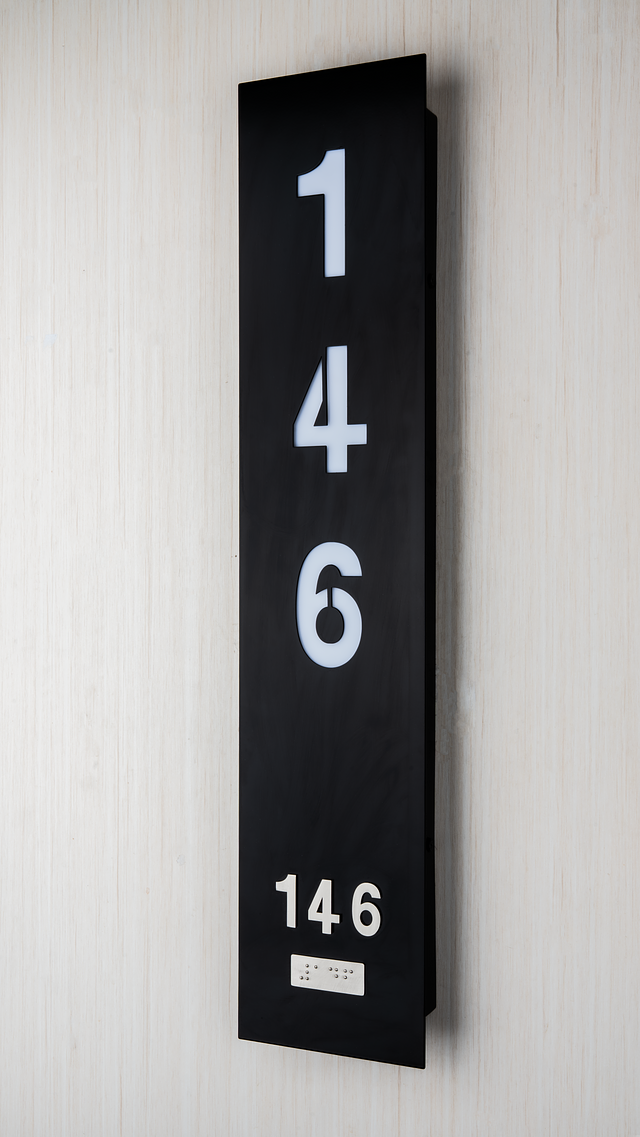

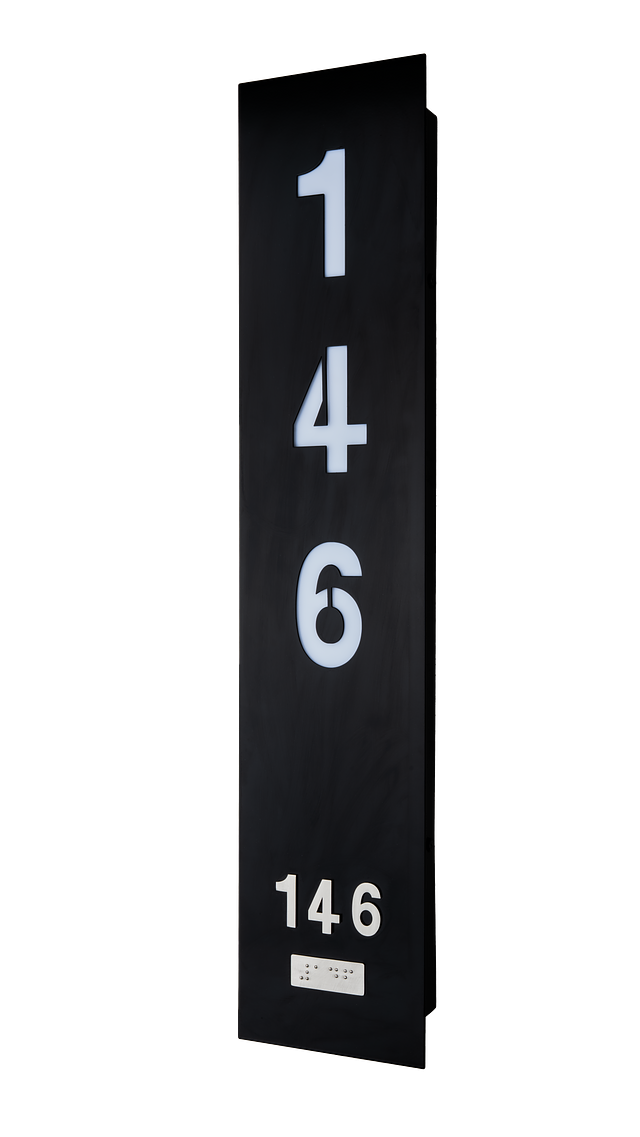

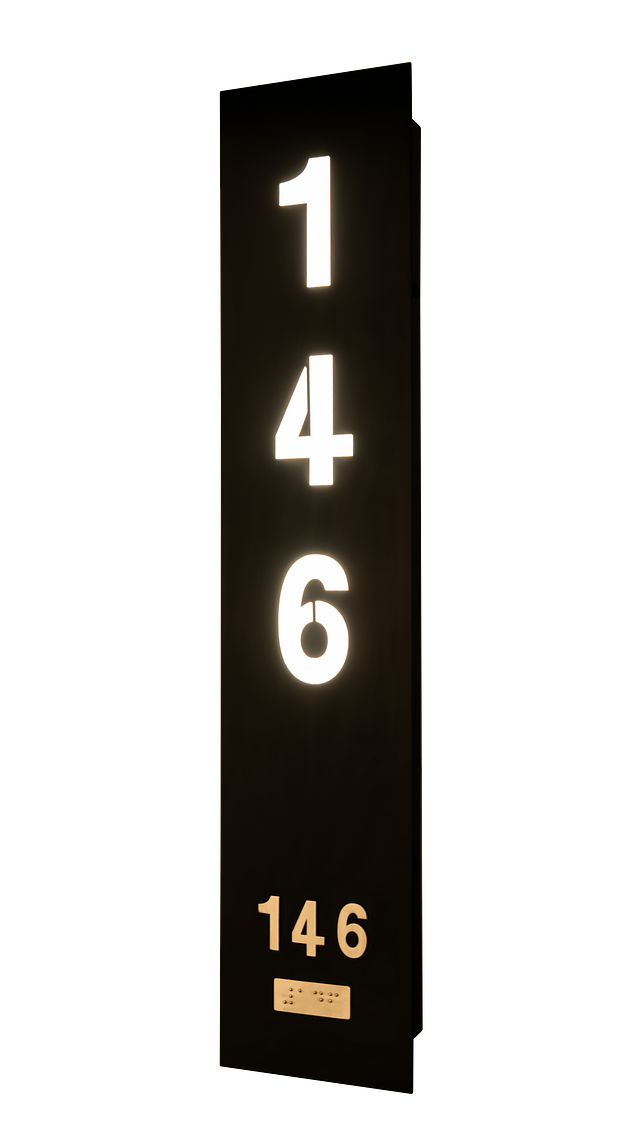

An optional braille plate integrates into the lower portion of the fixture alongside the secondary unit number, keeping all identification elements — primary numerals, secondary number, and tactile braille — within a single mounted unit rather than requiring separate hardware.
The JAX Unit Number Sconce LED operates on standard 120V line voltage and consumes 10 watts, delivering 550 lumens at a fixed 3000K color temperature for a warm, legible glow. CRI is rated at 80, providing accurate rendering of the illuminated numerals and braille plate against the fixture finish.Â
ADA compliance and accessible identification: JAX is ADA compliant and available with an optional integrated braille plate, allowing a single fixture to satisfy both visual and tactile unit identification requirements. This makes it well suited to multifamily, senior living, and hospitality properties where consistent accessible wayfinding is required across every unit entry.
Damp location performance: JAX carries a damp location rating, extending its use beyond fully enclosed interiors to covered breezeways, exterior corridors, and other semi-protected areas where moisture exposure is a factor. Confirm the specific application against local code requirements when specifying for partially exposed locations.
Choosing a braille plate configuration: JAX offers four braille plate options: no plate, or an integrated plate finished in black, brushed nickel, or a custom finish to match the fixture. Properties with a uniform finish palette typically match the braille plate to the fixture or font finish, while custom finish options allow the plate to blend seamlessly into a non-standard color scheme.

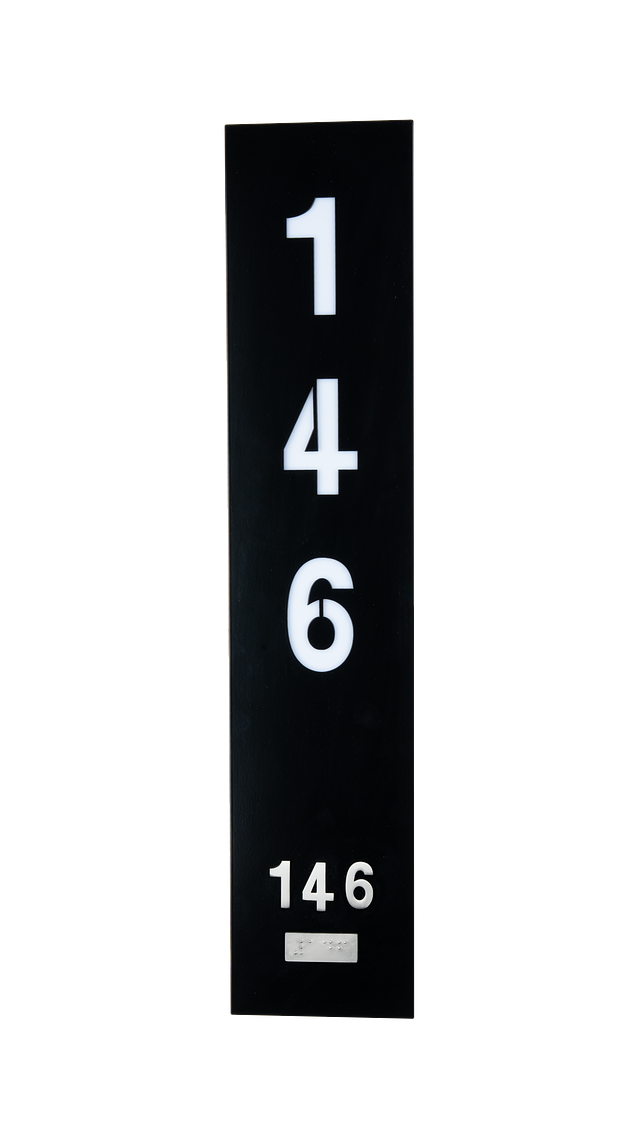

Finish selection: Because fixture finish and font finish are specified independently, JAX supports both high-contrast and tone-on-tone configurations. A black fixture with brushed nickel numerals creates strong legibility and visual presence from a distance, while matching custom finishes on both the housing and numerals produce a more understated, integrated look for premium or design-forward properties.
Ordering logic: Use the format JAX-[CCT]-[Fixture Finish]-[Font Finish]-[Braille]. For example, JAX-30-BK-BN-BPBK specifies the fixture with 3000K CCT, a black housing, brushed nickel numerals, and a braille plate finished in black. Custom fixture and font finishes are specified by RAL number or provided sample and noted at time of order.
Specifications subject to change — contact SAGE Brands or visit sage.lighting for the most current details.
